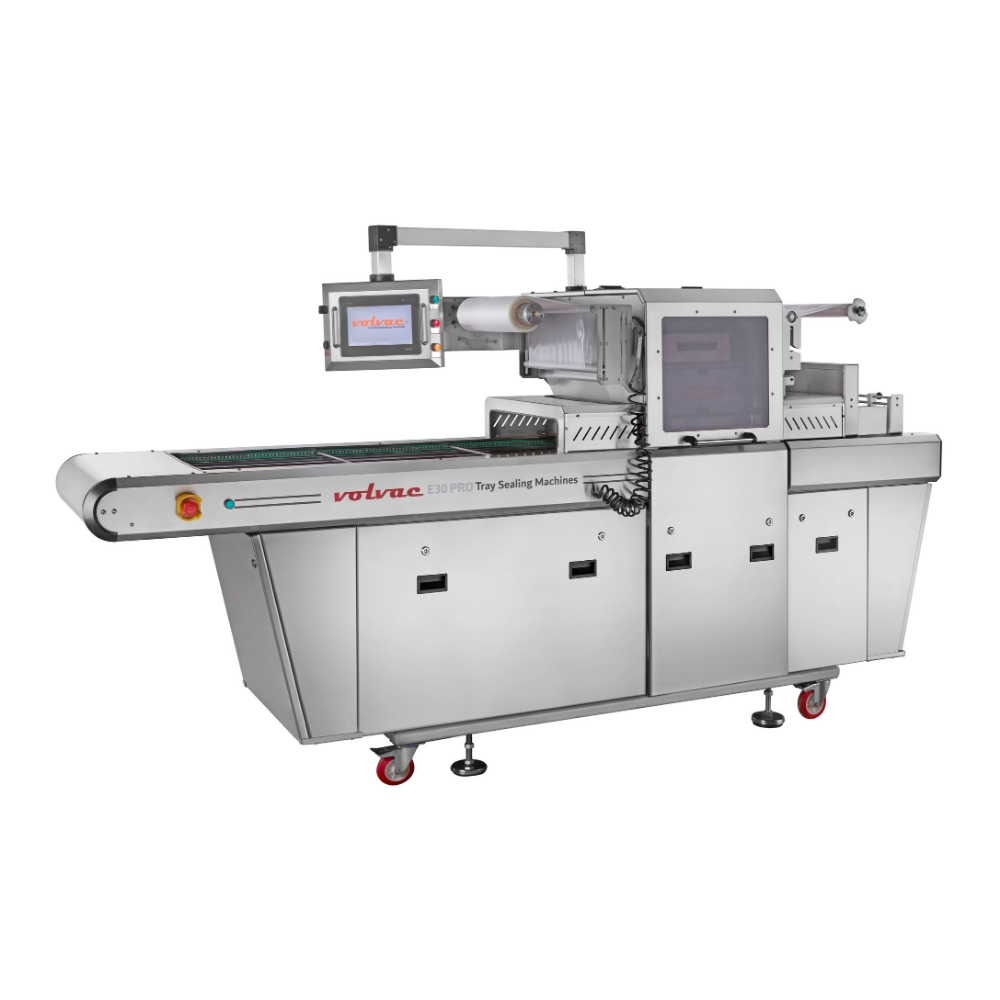

Tray Sealer Machine VOLVAC E30 PRO - SKINPACK

The fully automatic tray sealing machine E30 PRO is designed in line with tray sealing machine standards. The machine's dimensions are 917x2890x1765 h mm, and it can perform 360-480 cycles per hour, packaging 720-960 units. The pump capacity is 100 and 150 m³. The top film reel is 460 mm wide, and it can process two 190x144x80 tray molds side by side as a standard.

The fully automatic cup sealing machine E30 is a model typically ordered by customers who require high-volume vacuum packaging. Due to the large number of items to be vacuumed, its normal and large dimensions make it a highly practical model.

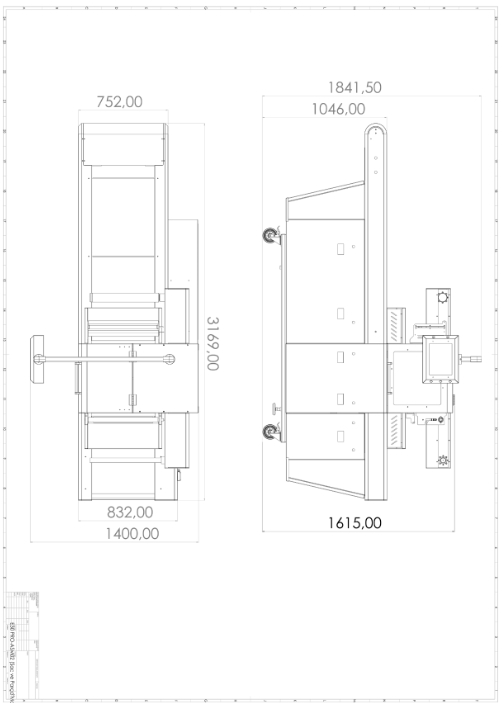

• Machine Dimensions: 900 x 2890 x 1830 h mm
• Weight: 590 kg
• Film Reel: Encoder system
• Top Film Width: 460 mm
• Safety System: IP63 protection class
• Gas Kit: Available
• Memory Capacity: 99 slots
• Air Consumption (1 cycle): 35 liters
• Vacuum Level: 0.1 mbar
• Pneumatic Supply: 16 NI/6-8 bar
• Power: 36A-400V 50 Hz
• Power Consumption: 5.5 kW
• Certification: CE
• Outer Mold: Stainless steel AISI304
• Cleaning: Design that provides ease of hygienic cleaning
• Safety System: Safety switch available
• Film Feeding System: SERVO motor
• Emergency Stop Button #1: Located in the product loading area (1 piece)
• Emergency Stop Button #2: Located on the control panel protection (1 piece)
• Lifting Unit: Pneumatic mold lifting system driven

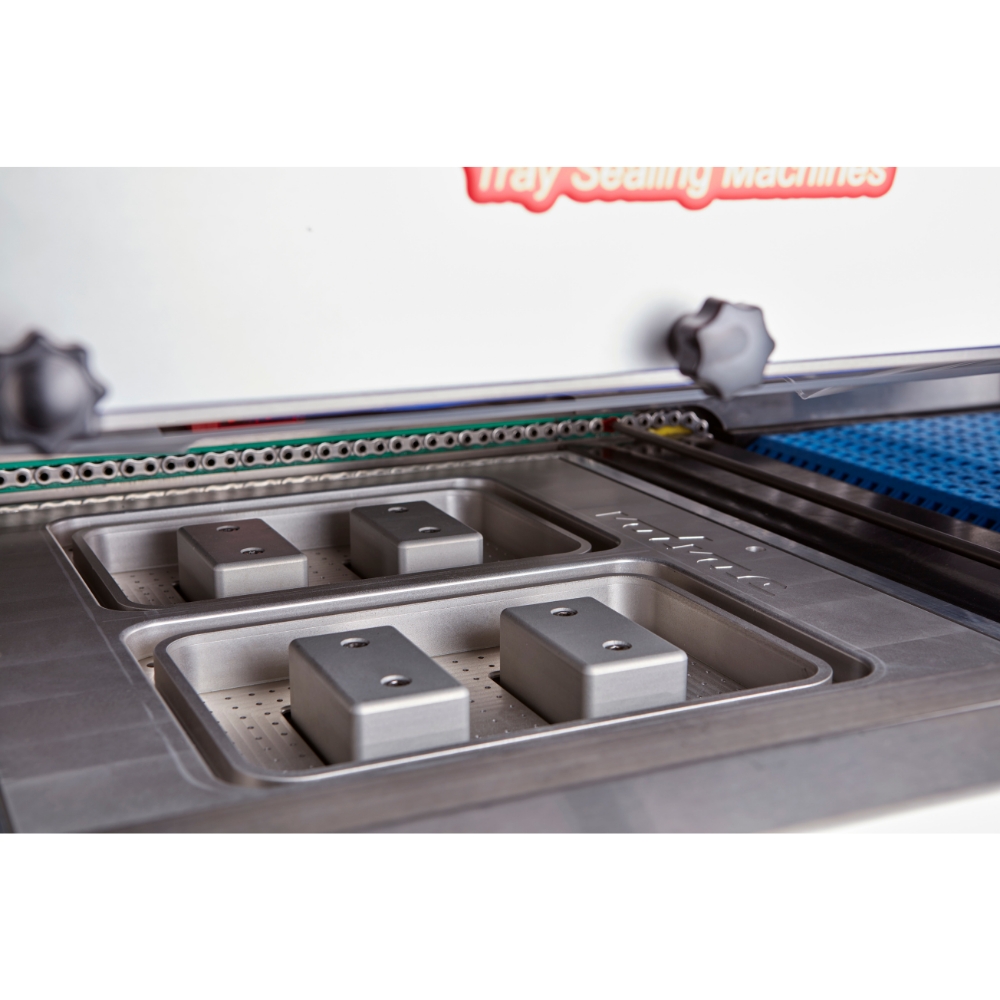

• Cup Unit: Easily replaceable
• Sealing Valve: Pressure-controlled
• Residual Unit: Specially designed
• Vacuum Sensor: Available
• Temperature Control System: Available
• Cup Discharge Station: Available
• Cutting - Sealing Station: Available
