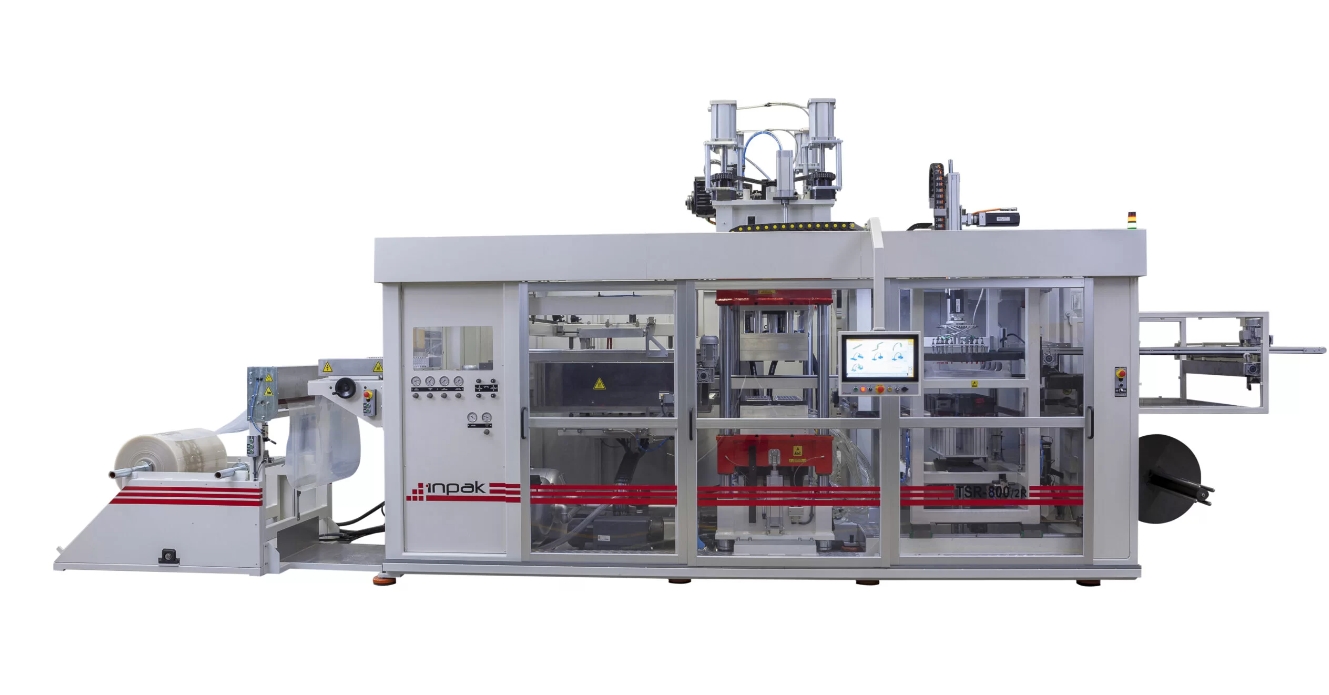

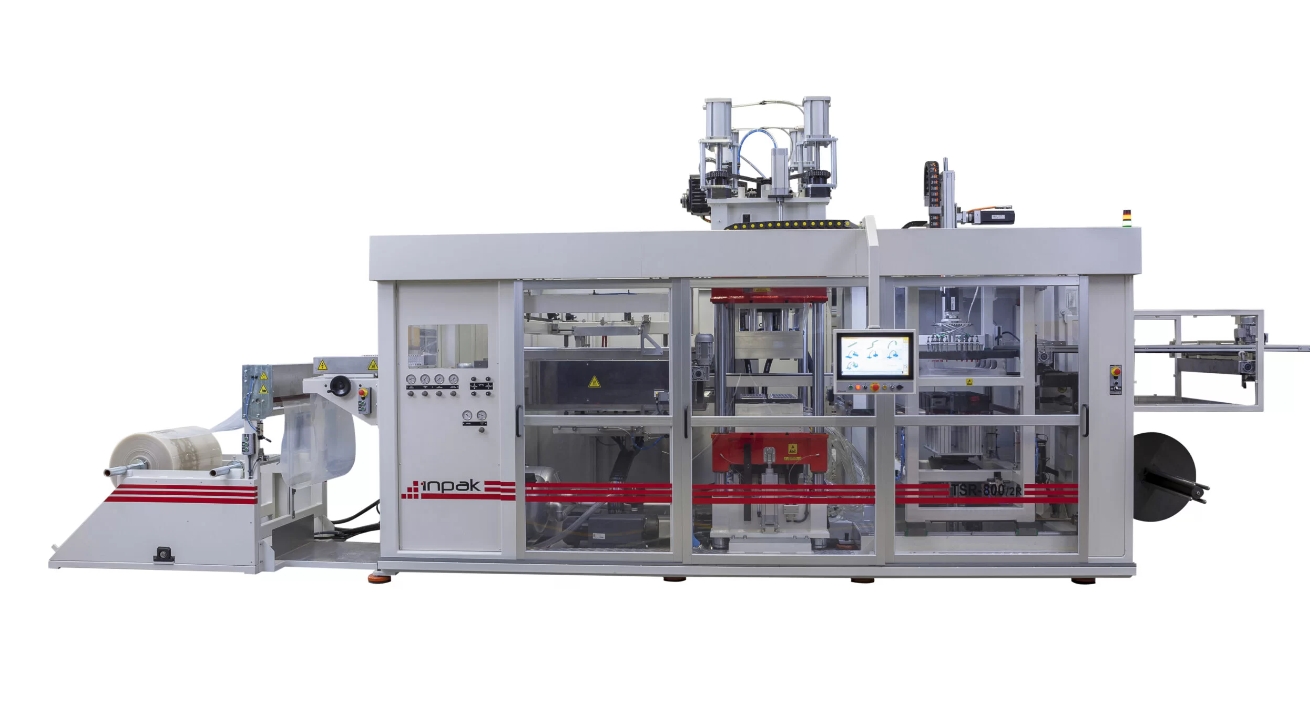

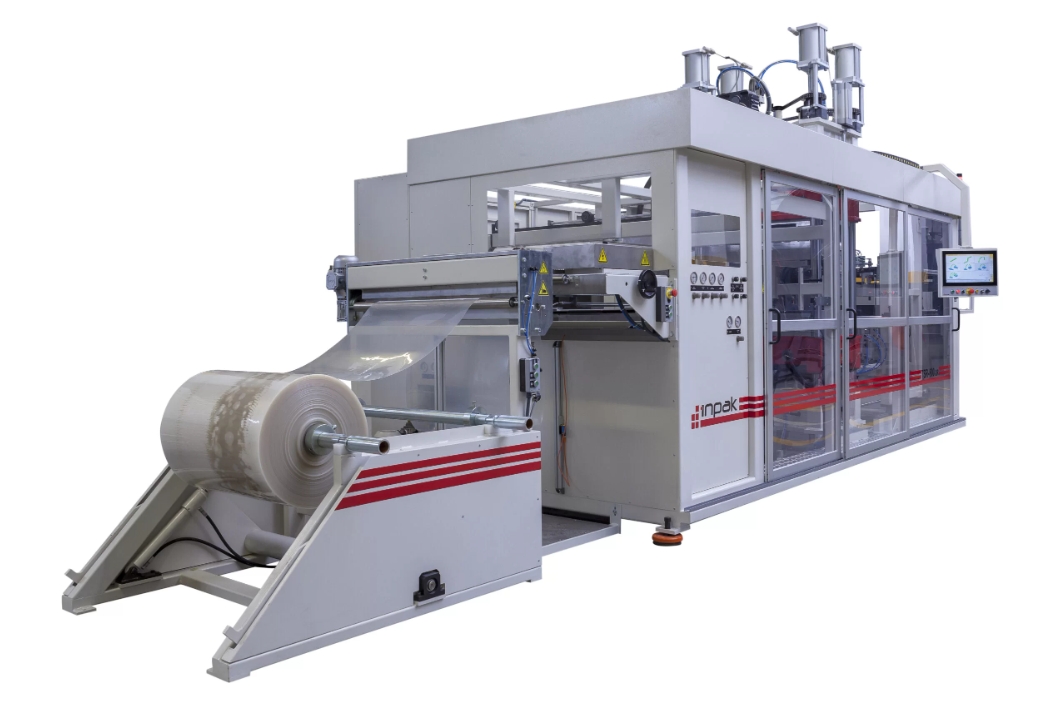

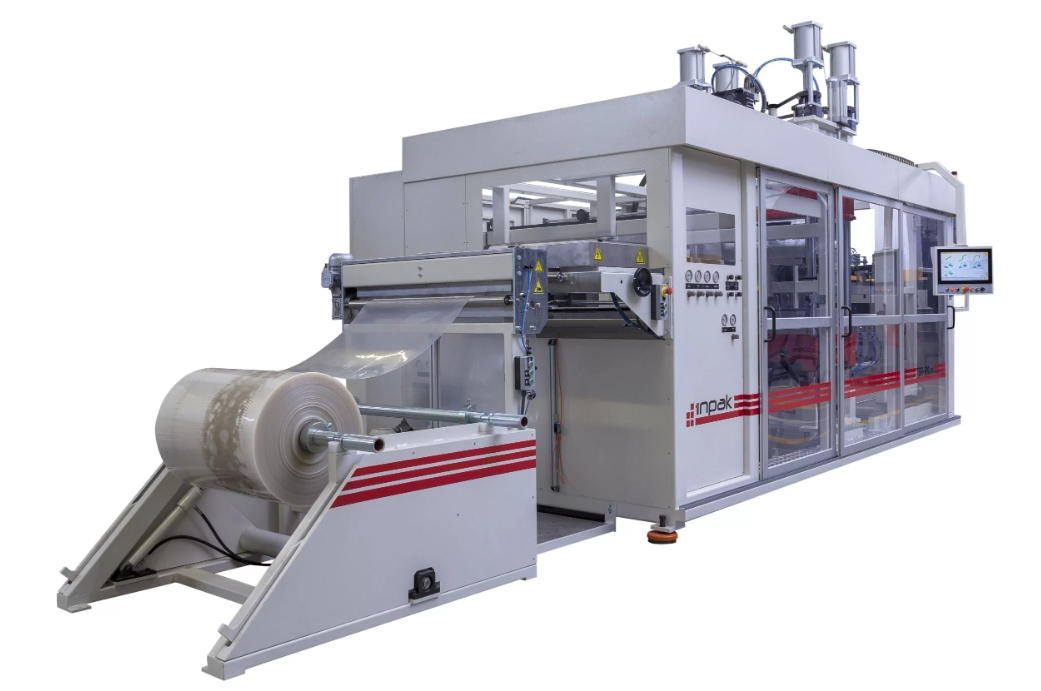

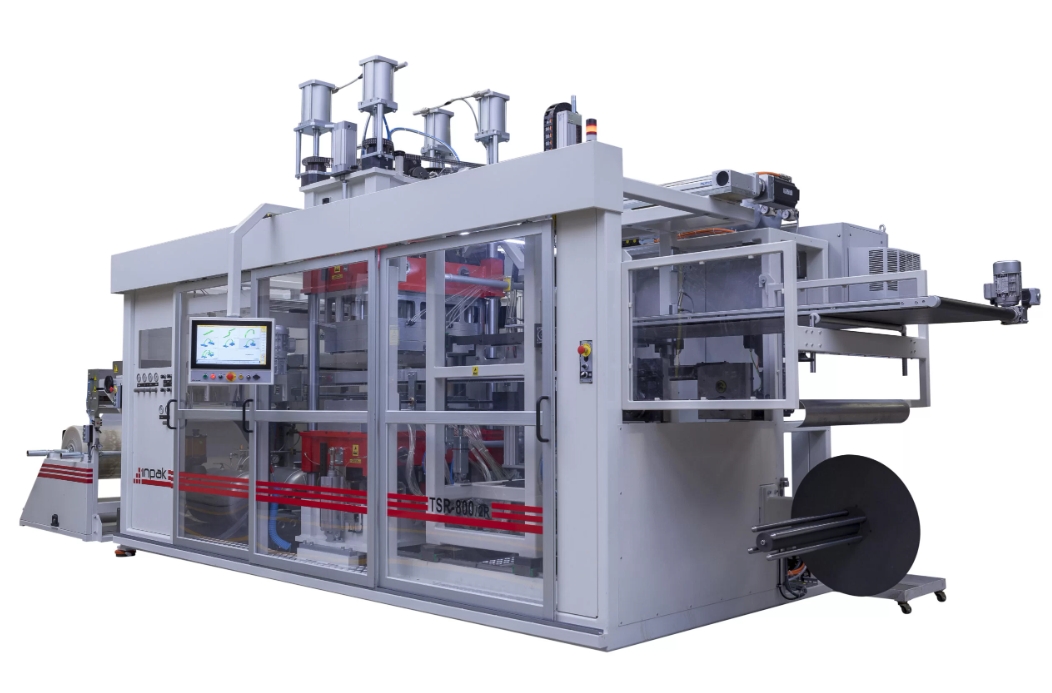

TSR-800 In-Mould Cutting Thermoforming Machine

Maximum Mold Size: 800 x 580 mm

Maximum Production Capacity: (Dry Cycle) 75

Maximum Foil Width: 840 mm

Maximum Foil Thickness (PET, CPET, PP, PVC, PS, OPS, PLA): 1.5 mm

Compressed Air: 6 Bar

Vacuum Pump: 100 m3/h

Power Consumption: 25-50 kW

Total Installed Power: 130-170 kW

Control Unit: B&R Industrial PC

Display: B&R Color, 18.5" Touchscreen

Central Lubrication System: BEKA-MAX - PC Controlled

Software: İNPAK
