Thermoforming Machines

• Capacity: 0 - 45 cycles
• Maximum Forming Area: 750 x 500 mm.
• Sheet Material Width: 780 mm.
• Sheet Material Thickness: 2 mm.
• Draw: 520 mm.
• Compression Force: 32,500 daN
• Forming Depth: 150 mm.
• Compressed Air Requirement: 9 mᵌ, 8 bar
• Electrical Power Requirement: 222.11 kW (at full load)
• Water Pressure and Temperature: 3.4 bar, 8˚C, 50,000 kcal
• Weight: 15 tons
• Usable Materials: PP, PS, PET, ABS, PE
• Number of Resistances: Longitudinal upper 152 pieces, lower 132 pieces

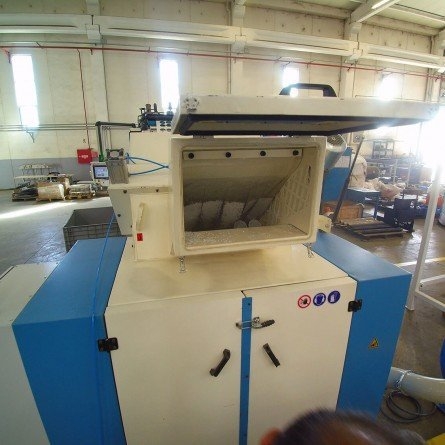

The general specifications of our models IPGR 38125-xx, IPGR 38100-xx, and IPGR 2880-xx are as follows. All our models have 3 rotor blades and 2 fixed blades. The rotor diameter is 380 mm, and it comes in three different lengths (1200/1000/800). The motor power is 15/18.5 kW.

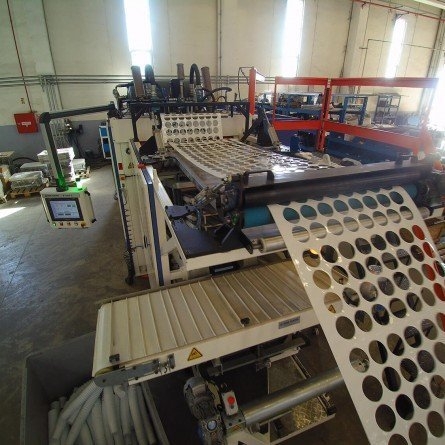

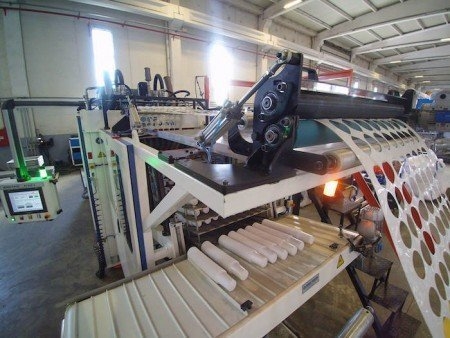

Thermoforming machines 3: Vacuum thermoforming machines have a quality that directly affects the product appearance and the first impression on the user. The number of cycles varies between 30 and 100 in our machines. The product unloading is conveyor-based, the conveyor speed is adjustable, and each model has a reducer motor for the stacker movement.

In all thermoforming machines, the adjustable heat is applied until the sheet softens but without causing damage. The vacuum method is used to shape the material by removing the air inside the mold. The shaped parts are taken from the mold, corrected, and take their final form.

With our automatic thermoforming machines, the lower and upper resistances can be controlled at different temperatures. Since the softening degrees of each plastic type differ, our machines allow these temperatures to be easily adjusted. Homogeneous heat distribution is crucial in these machines.

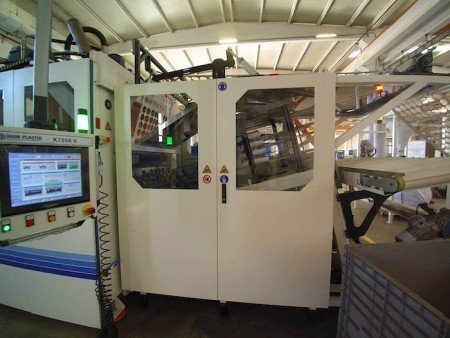

Thermoforming machines 4: The quality of work in these machines is ensured independently of the operator due to the quality of the machines. An elevator stacking system is standard in all models. The vacuum packaging quality is indisputable.

Once plastic products reach a certain level of usage, a thermoforming packaging machine is used for packaging and ready-to-use products. With Inan Plastic Thermoforming machines, you can quickly, efficiently, and economically package food, industrial, medical, and daily consumer products.
