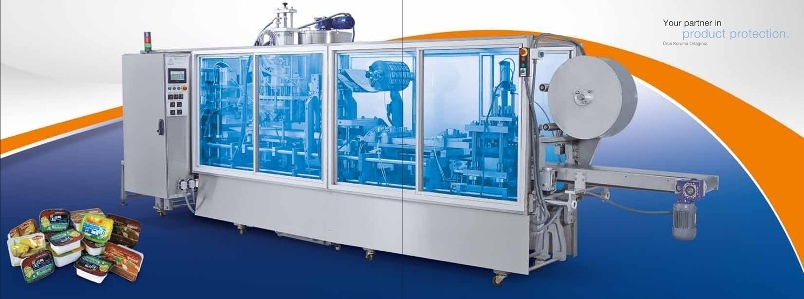

GM 25-25 Fully Automatic Thermoform Packaging Machines

• Max. Foil Width: 300 mm
• Max. Depth: 40 mm
• Max. Reel Weight: 250 kg
• Max. Reel Diameters: Lower 800 mm / Upper 300 mm
• Reel Core Diameter: Ø 76 mm
• Capacity: 15-25 strokes/min - 37,500 cups/hour
• Compressed Air Requirement: 6 bar, max. 1500 lt/min
• Cooling Water: 15-20 °C, demineralized
• Electricity Consumption: Max. 380 V, 3 Phase, 50 Hz
• Bottom Film: PET, PVC+PE, PS+PE
• Top Film: AL+OPP, AL, AL+PET

Machine Dimensions:

• Length: 6500 mm
• Width: 1400 mm
• Height: 1200 mm

Machine Weight: Max. 2600 kg
Machine Construction: Stainless steel
