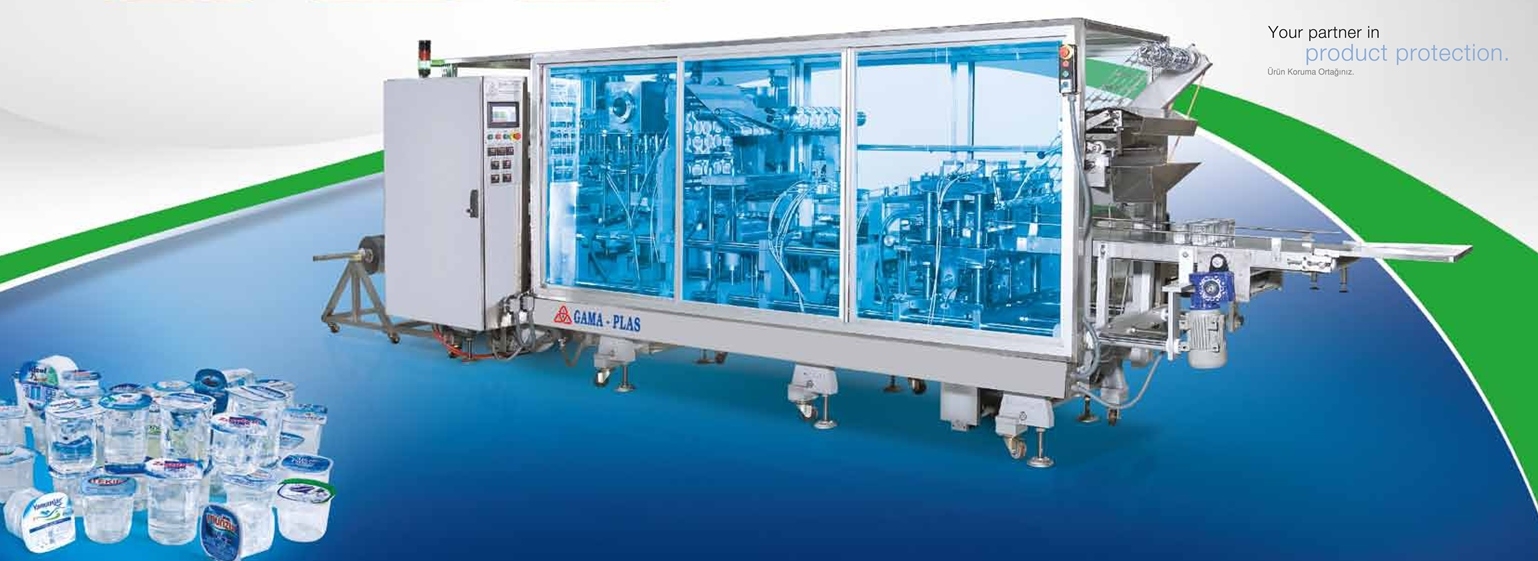

GM 20-36 Fully Automatic Thermoform Packaging Machines

• Max. Foil Width: 360 mm
• Max. Depth: 100 mm
• Max. Reel Weight: 200 kg
• Max. Reel Diameters: Lower 800 mm / Upper 250 mm
• Reel Core Diameter: Ø 76 mm
• Capacity: 9600 cups/hour
• Compressed Air Requirement: 6 bar, max. 1600 lt/min
• Cooling Water: 15-35 °C, 1000 lt/hour
• Electricity Consumption: Max. 15 kW, 380 V
• Bottom Film: PET, PVC+PE, PS+PE
• Top Film: AL+OPP, AL, AL+PET

Machine Dimensions:

• Length: 6500 mm
• Width: 1200 mm
• Height: 2000 mm

Machine Weight: Max. 2600 kg
Machine Construction: Stainless Steel
