Z1-370 Flexo Printing Machine

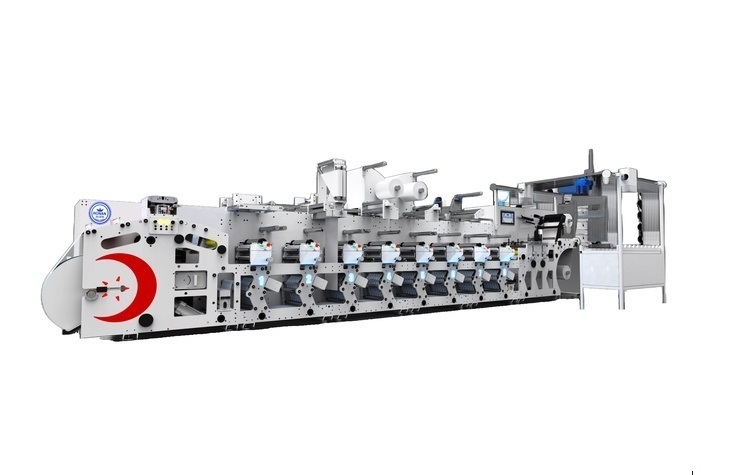

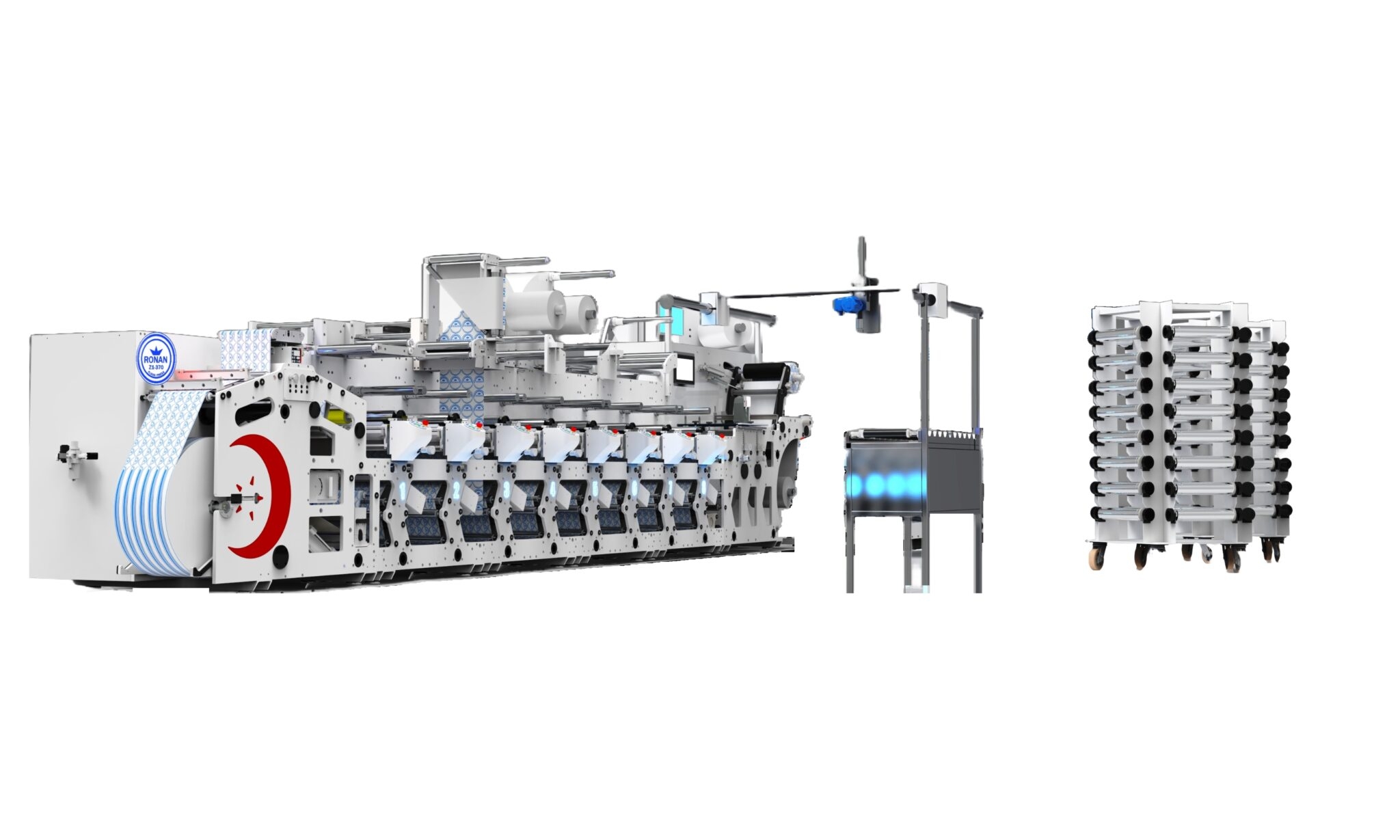

Z1-370 Flexo Label Press

Designed and fully manufactured in Türkiye, the Z1-370 Flexo Label Press is the first of its kind in the country. This machine delivers high performance and advanced technology, offering an exceptional solution for label production.

Technical Specifications:

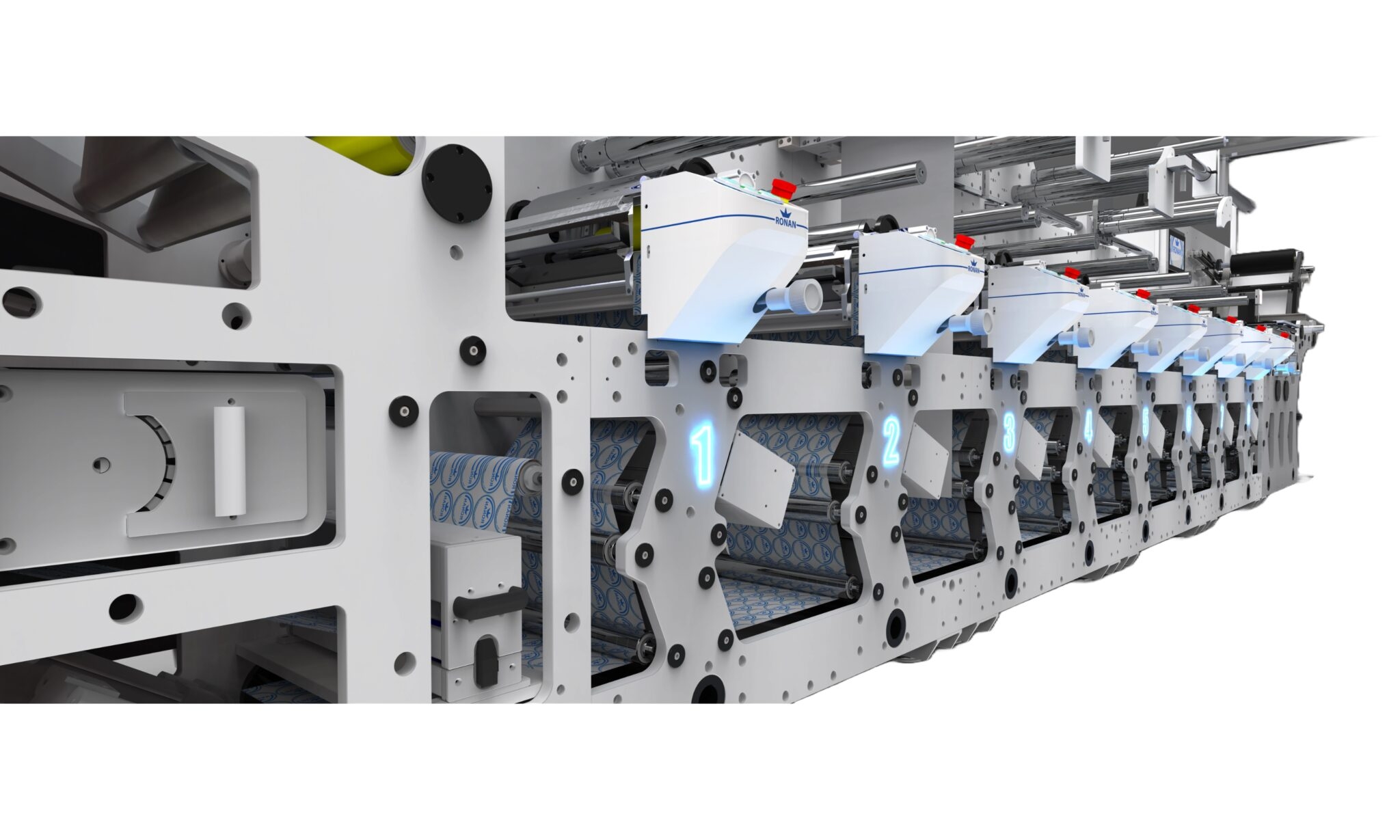

• 8-Color Flexo Printing + UV and LED UV: High-quality and versatile printing capabilities.
• Printing Width: 36 cm
• Corona Unit: Improves ink adhesion by enhancing surface energy.
• Web Cleaner: Ensures material cleanliness.
• Pneumatic Reel Loading Elevator: Simplifies reel loading.
• Paper Splicing Unit: Allows seamless paper changes during production.

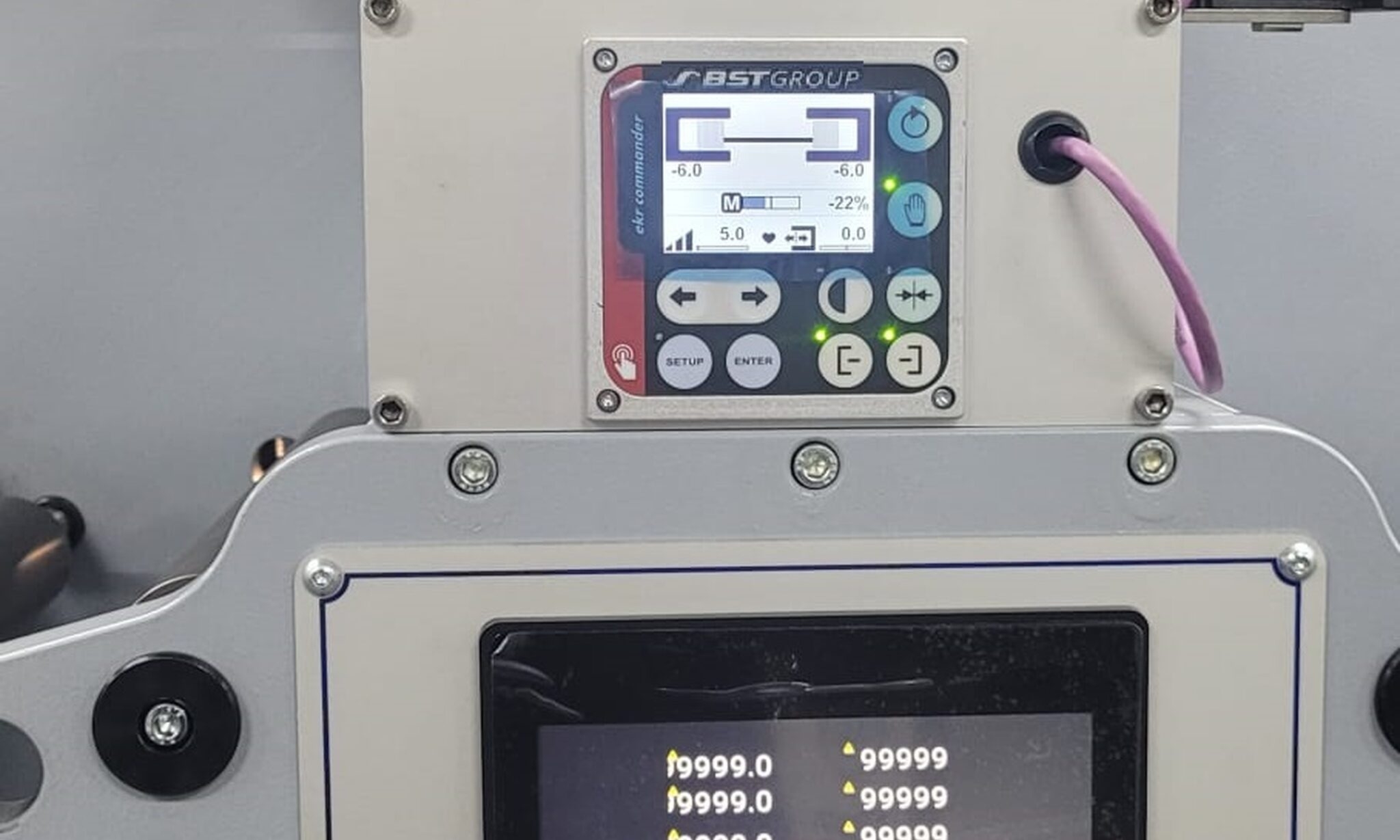

• BST Edge Control System: Provides precise edge alignment.
• Adhesive Printing: Enables direct printing on adhesive surfaces.
• Mobile Cold Foil Unit: Movable across all units.
• Piggyback: Facilitates multi-layer label production.
• Lamination Unit: Protects and enhances labels.
• Kocher Beck Gap Master Unit: Enhances cutting accuracy.
• Dual Cutting Unit: Improves cutting efficiency.
• BST Camera: Monitors print quality.
• Servo System Winding: Ensures fast and accurate winding.

Origin: Made in Türkiye

The Z1-370 Flexo Label Press sets a new benchmark in the industry with its innovative design and user-friendly features

FeatureZ1-370Z1-470Z1-670

Max. Speed180 m/min180 m/min180 m/min

Colors6-126-126-12

Paper Width370 mm470 mm670 mm

Print Width360 mm460 mm660 mm

Print Length (ZET)Min. 64.68 mm (8 inch) - Max. 210.211 mm (26 inch)

Repeat76-190 mm96-230 mm96-230 mm

Unwinding Diameter900 mm900 mm900 mm

Winding Diameter900 mm900 mm900 mm

Power380-400V, 3 PH , 50/60Hz

Dimensions2460 X 10774 X 2650 mm

.
