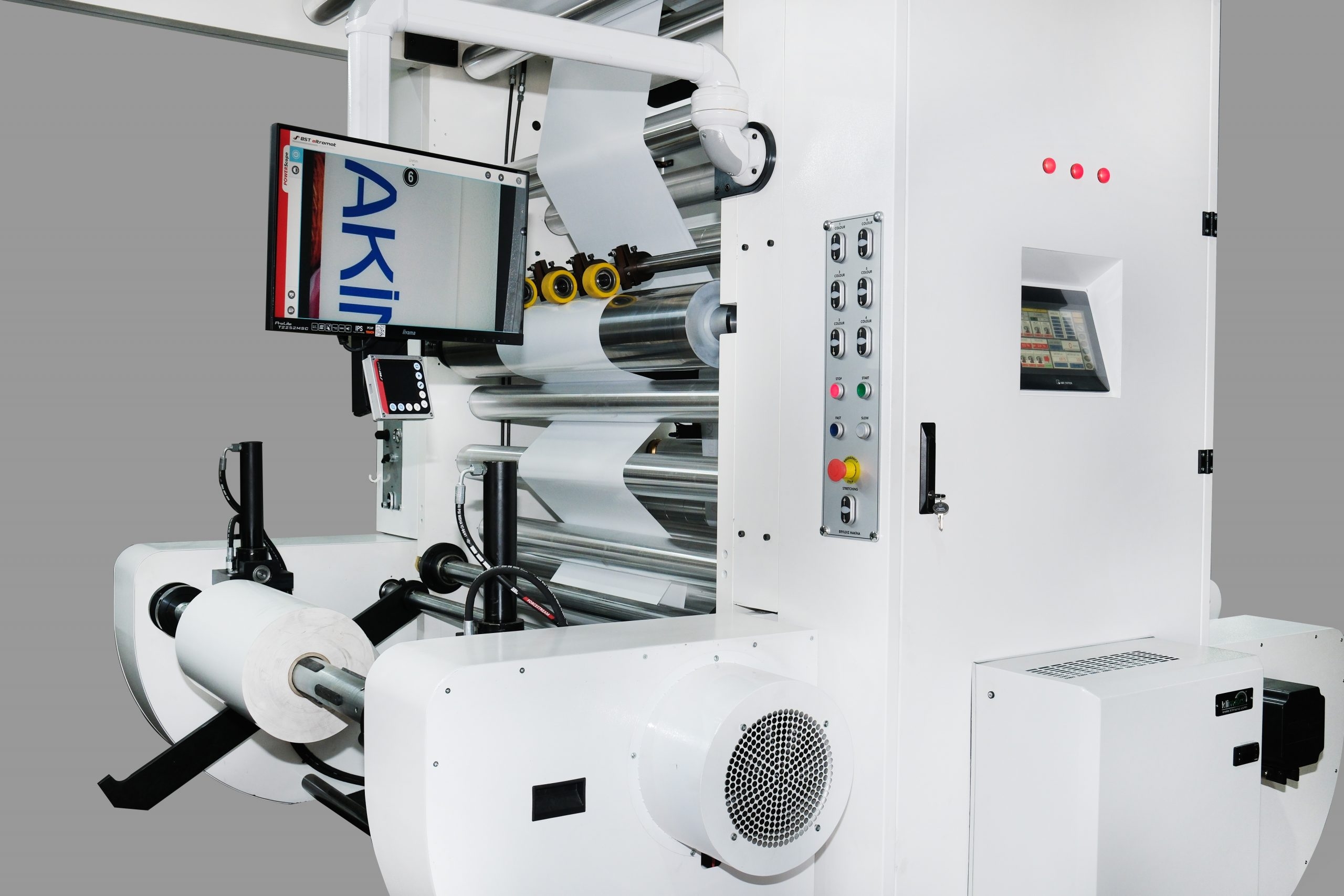

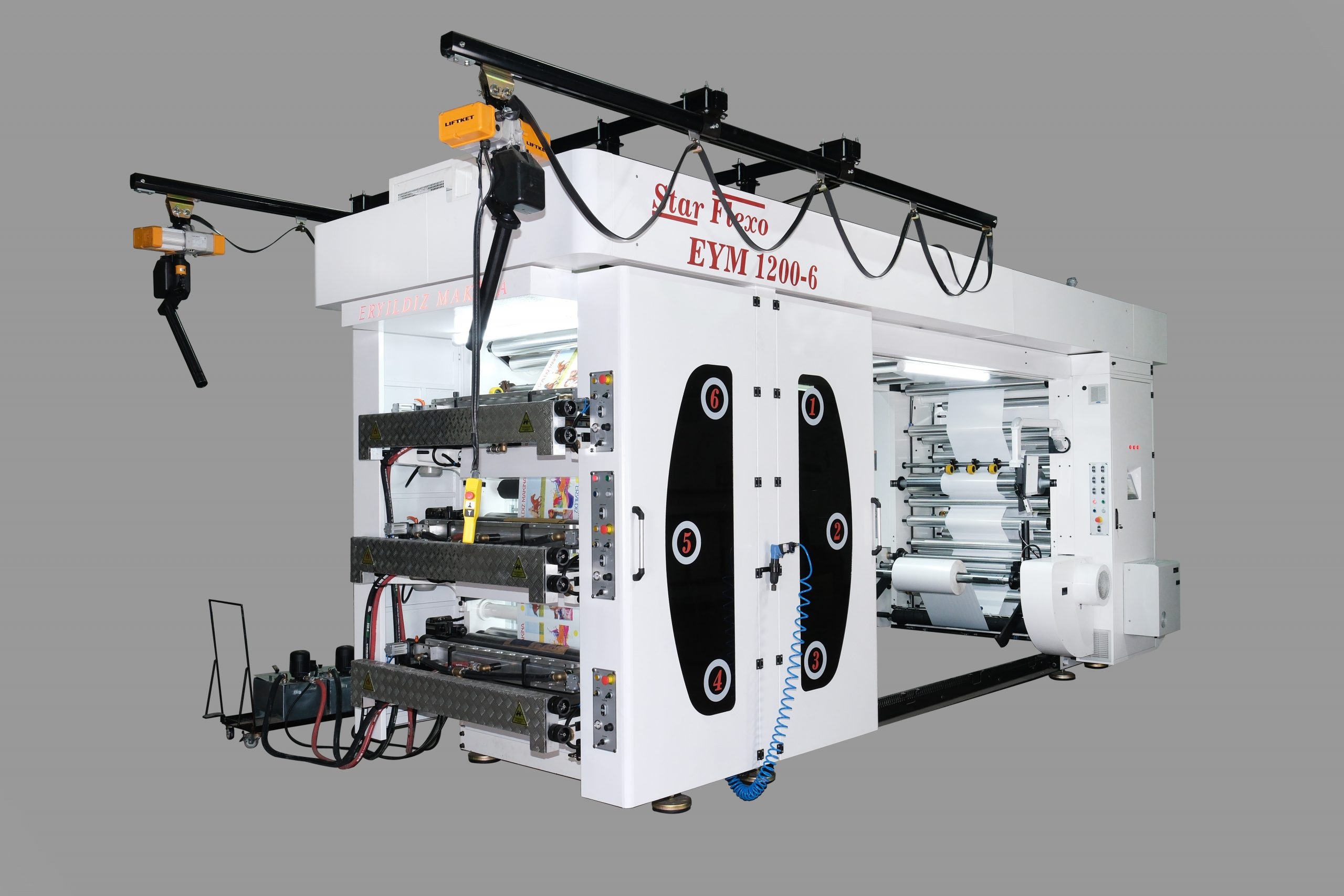

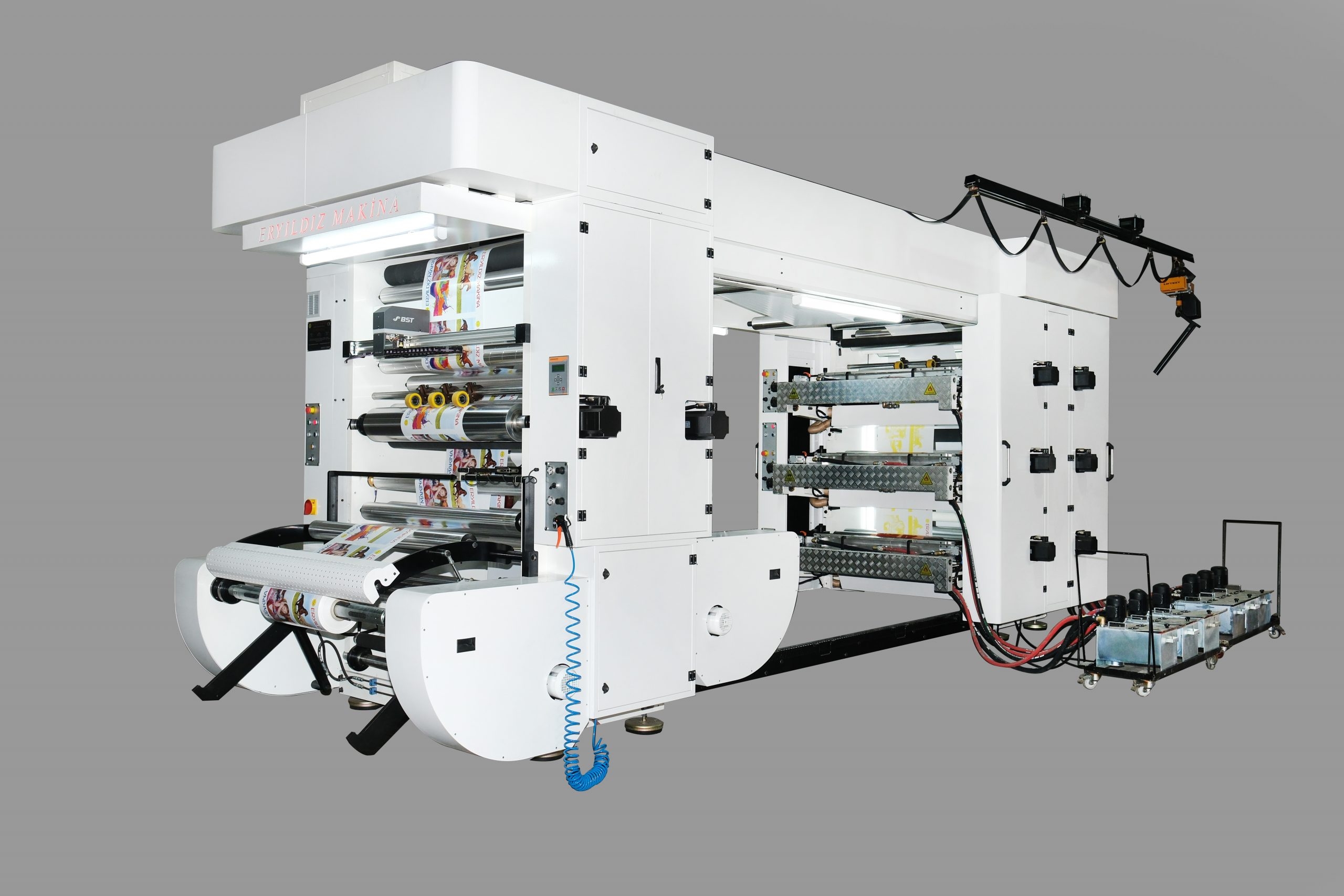

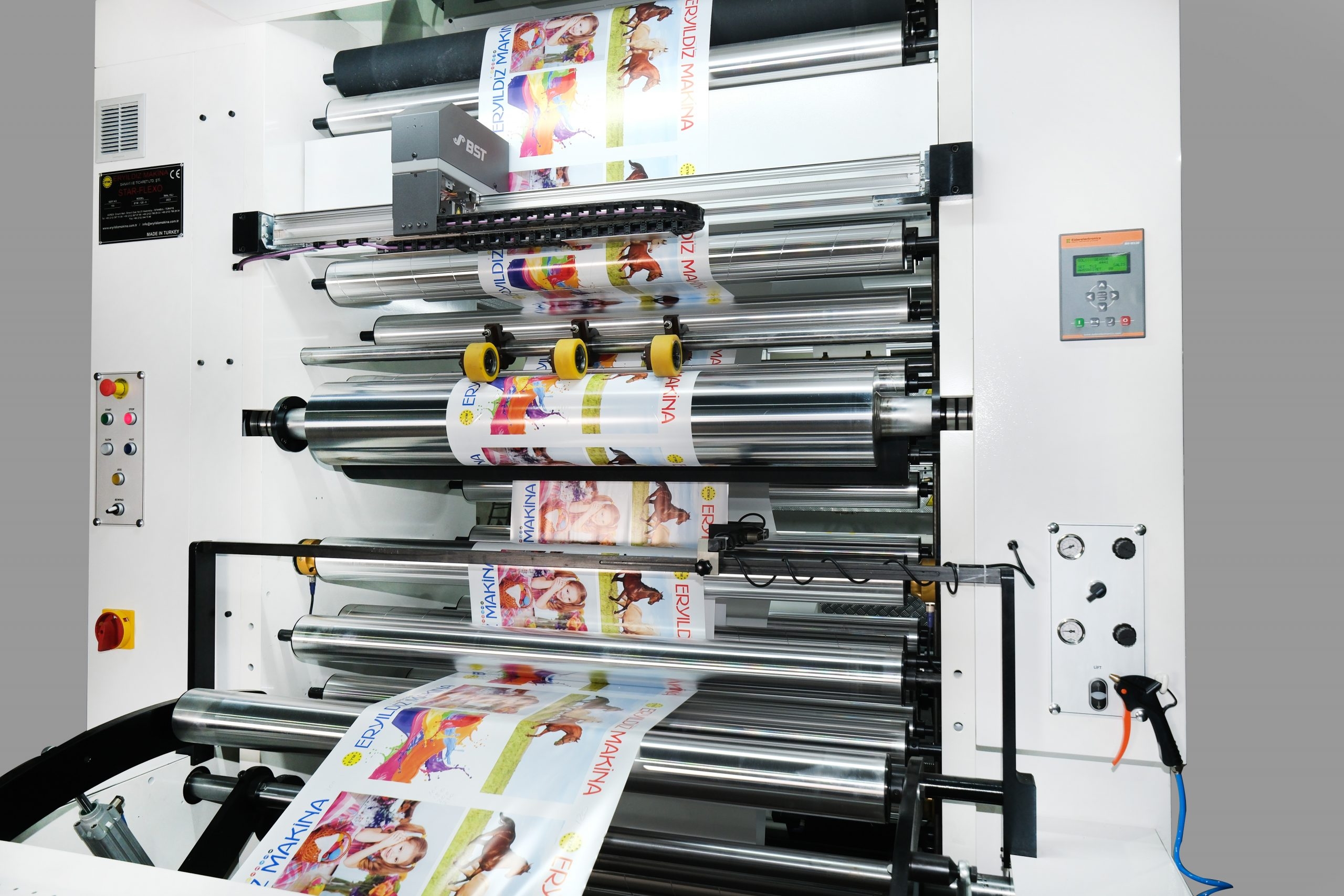

EYM-6 Color Stack Type Flexo Printing Machine

Model Specifications for 6-Color Flexo Printing Machines

**Models:**
- 800-6
- 1000-6
- 1200-6
- 1400-6
- 1600-6
- 2000-6
- 2500-6

**Printing Length (mm):**
- 250-900

**Maximum Printing Width (mm):**
- 1200

**Main Roller Width (mm):**
- 1250

**Printing Unit:**
- 6 Colors (Servo System)

**Plate Thickness (mm):**
- Standard: 1.14
- Optional: 2.54 – 2.84

**Unwinder and Rewinder Roll Diameter (mm):**
- 1150

**Printing Speed:**
- Minimum: 20 m/min
- Maximum: 300 m/min

**Printing Configurations:**
- 6+0
- 5+1
- 4+2
- 3+3

**Printable Materials:**
- PE (Polyethylene)
- PP (Polypropylene)
- OPP (Oriented Polypropylene)
- CPP (Cast Polypropylene)
- PVC (Polyvinyl Chloride)
- HDPE (High-Density Polyethylene)
- LDPE (Low-Density Polyethylene)
- BOPP (Biaxially Oriented Polypropylene)
- Metallized Paper
- Gelatin
- Tissue Paper
