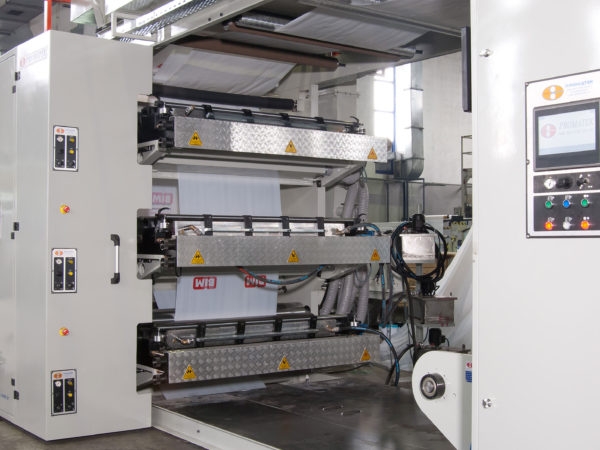

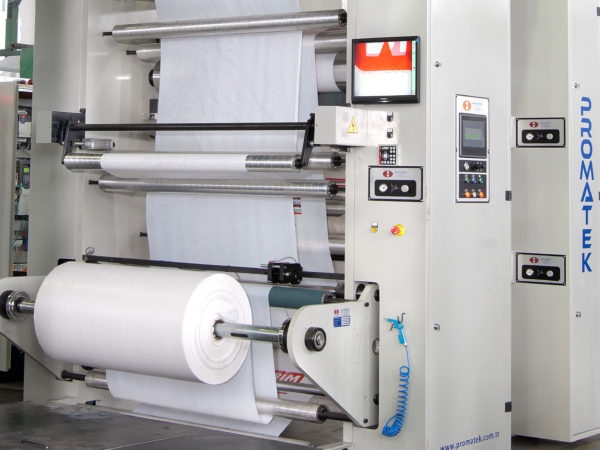

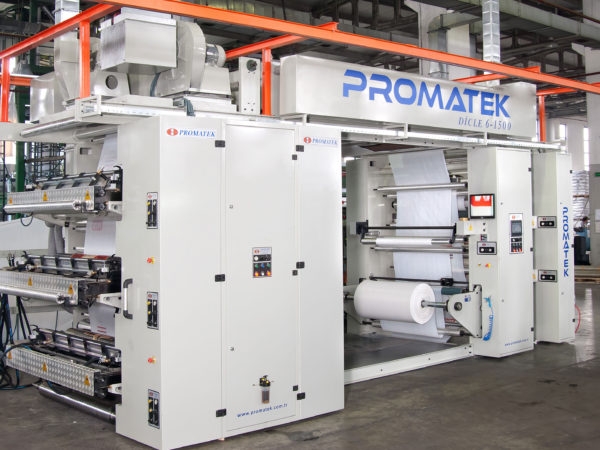

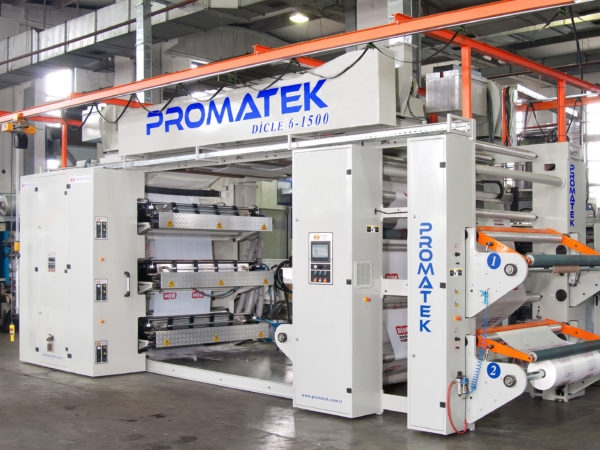

Dicle Servo Series 2 4 6 8 Color Stack Type Flexo Printing Machine

The DICLE SERVO SERIES is a next-generation machine group designed to provide users with low capital investment, highly efficient, and high-quality production to meet the ever-increasing demands, especially in the field of flexible packaging, adhesive products (tapes, protective bands), and food packaging. It incorporates several technical innovations, including a newly designed printing group.

Notably, the compact design and integration of DICLE Series printing machines minimize energy consumption. The new-generation efficient drying design contributes to energy savings, playing an active role in environmental protection. The power mechanics in the printing section ensure excellent results in terms of HIGH PERFORMANCE. It reduces customization time, particularly enhancing the efficiency of the printing process. The effective control panel, allowing for maximum energy savings, facilitates operator control for efficient printing production.

The high-speed and low-waste production is enabled by the printing tracking module designed by PROMATEK MACHINE. The Dicle Series printing machine can be produced in various models beyond the standard series, catering to the demands of users through customized designs.

Technical Specifications:

• Maximum Speed: 300 m/min
• Working Width: 800-1000-1200-1300-1400-1600-1800-2000-2200mm
• Line Repeat: 800 mm
• Roll Diameter: 800 mm
• Core Inner Diameter: 76 mm (3") (Optional: 152 mm (6"))
• PLC system, ceramic anilox, magnetic brake, edge control, doctor blade system, camera printing tracking system, servo system
