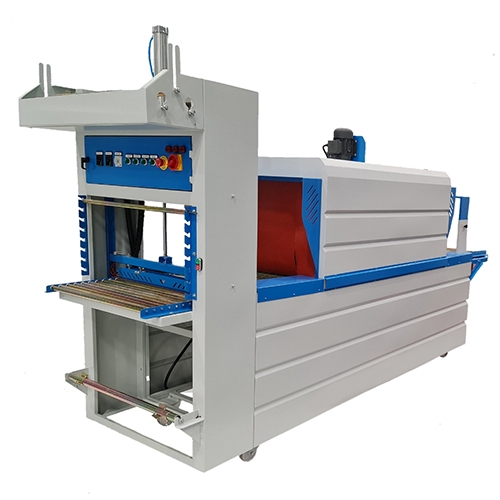

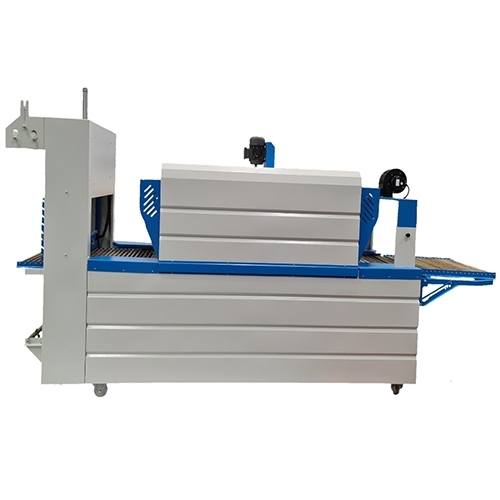

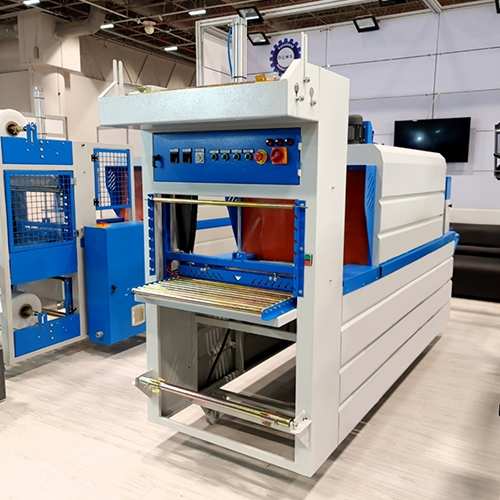

K1PE-S Semi Automatic Shrink Wrapping Machine

01 Description

The K1PE-S series, featuring extremely simple operation, ensures easy and secure packaging of single or tray products made from various materials such as plastic, metal, glass, wood, and cardboard. It is utilized in a wide range of industries including food products, cosmetics, chemicals, medical, paint, automotive, white goods, cables and electrical materials, and printing.

02 Application

The operator manually places products on the roller conveyor, pushes them into the sealing bar area, and presses the button to close the shrink film. The new product pushes the previous product into the shrink tunnel. Inside the tunnel, the polyethylene film tightly wraps around the product with the heat, and at the tunnel exit, the fan cools it down, allowing the film to take the shape of the product. This process not only provides an excellent appearance but also protects products from abrasion, scratches, and dust during storage and transportation.

K1PE-S Series Semi-Automatic Shrink Packaging Machine

03 General Features

• Monoblock Chassis: Sturdy and durable structure.
• Ceramic Coated Sealing Bar: High durability and long life.
• PID Temperature Control System: Ensures perfect sealing.
• Silicone Curtains: Minimum heat loss at tunnel entry and exit.
• Excellent Thermal Insulation: Minimizes heat loss.
• Cooling Fan: Provides rapid cooling at the tunnel exit.
• Adjustable Tunnel Temperature: Ideal temperature setting for different products.
• Easy and Quick Film Change: User-friendly design.
• Braked Wheels: Easy transportation and relocation.
• Emergency Stop Button: Ensures safe operation.
• Easy Installation and Simple Operation: Quick startup and operation.
• Production Efficiency and Packaging Quality: High performance and quality packaging.
• CE Standard: Complies with European safety and quality standards.
• Warranty: 2 years warranty excluding wearable parts.
• Spare Parts Supply Guarantee: 7 years spare parts availability.

04 Technical Specifications

Model: K1PE-S 70/50

• Max. Product Height: 380 mm
• Max. Product Width: 500 mm
• Max. Reel Width: 700 mm
• Reel Diameter: 350 Ø
• Film Type: PE
• Film Thickness: 30-150 µ
• Power Supply: 380V 3Ph 50/60Hz
• Installed Power (Including Tunnel): 18 kW
• Production Capacity: 240-360 packs/hour
• Operating Pressure: 6 bar

Model: K1PE-S 90/50

• Max. Product Height: 380 mm
• Max. Product Width: 700 mm
• Max. Reel Width: 900 mm
• Reel Diameter: 350 Ø
• Film Type: PE
• Film Thickness: 30-150 µ
• Power Supply: 380V 3Ph 50/60Hz
• Installed Power (Including Tunnel): 20 kW
• Production Capacity: 240-360 packs/hour
• Operating Pressure: 6 bar
