Product Description
Application Areas
- Food
- Textile
- Automotive
- Beverage
- Printing
- Pharmaceutical
- Cosmetic
- Cleaning Agents
- Paint
- Other Industrial Products
Working Principle
After the operator adjusts the guide system according to the products, they manually arrange the products and press the start buttons. The machine automatically pushes the arranged products beyond the film curtain. The jaw performs the cutting and sealing process automatically, then the conveyor belt transports the products to the tunnel for shrink packaging.

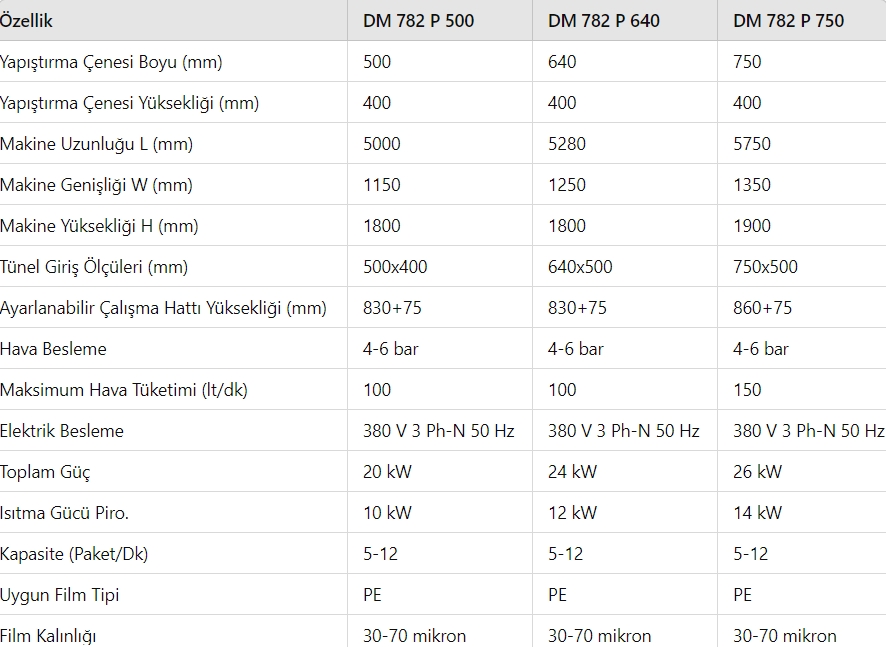

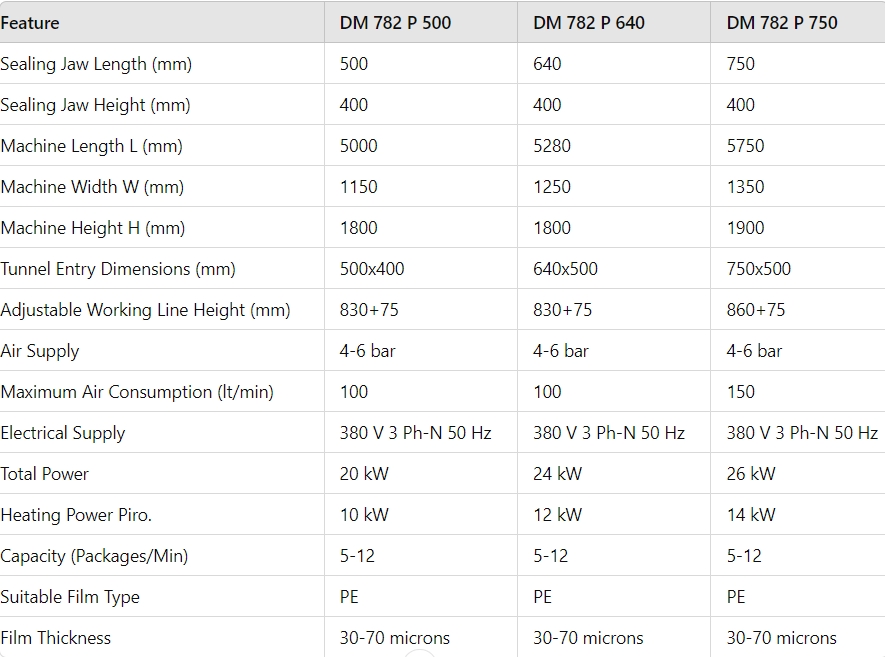

Technical Specifications
- Cutting and Sealing Unit
- Front Feeding System
- Package Counter
- Pneumatic System
- Motor Controlled Bottom and Top Film Unwinding
- PLC Controlled
- User-Friendly Color Touch Screen
- Rapid Cutting and Sealing Feature (0.3-1 sec)
- Odorless and Smokeless Operation
- Shrink Tunnel
- Thermostat Controlled Operating Temperature
- Tunnel Conveyor with Speed Control, Heat-Resistant Silicone Hose Coated Rod or Mesh Belt
- Easily Replaceable Cr-Ni Resistance System
- Hot Air Direction System
- Cooling Fan at Tunnel Exit
- Tunnel Conveyor Operable During Power Outages (Optional)
