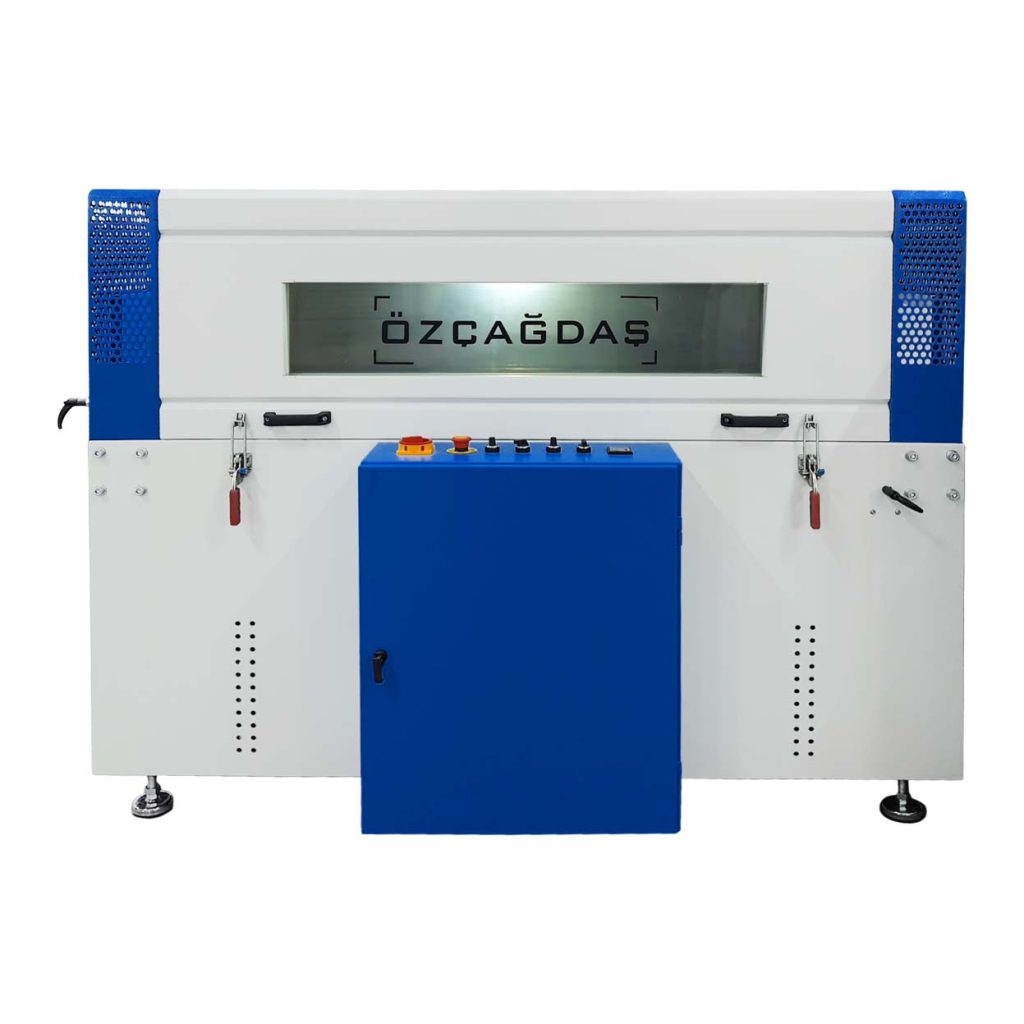

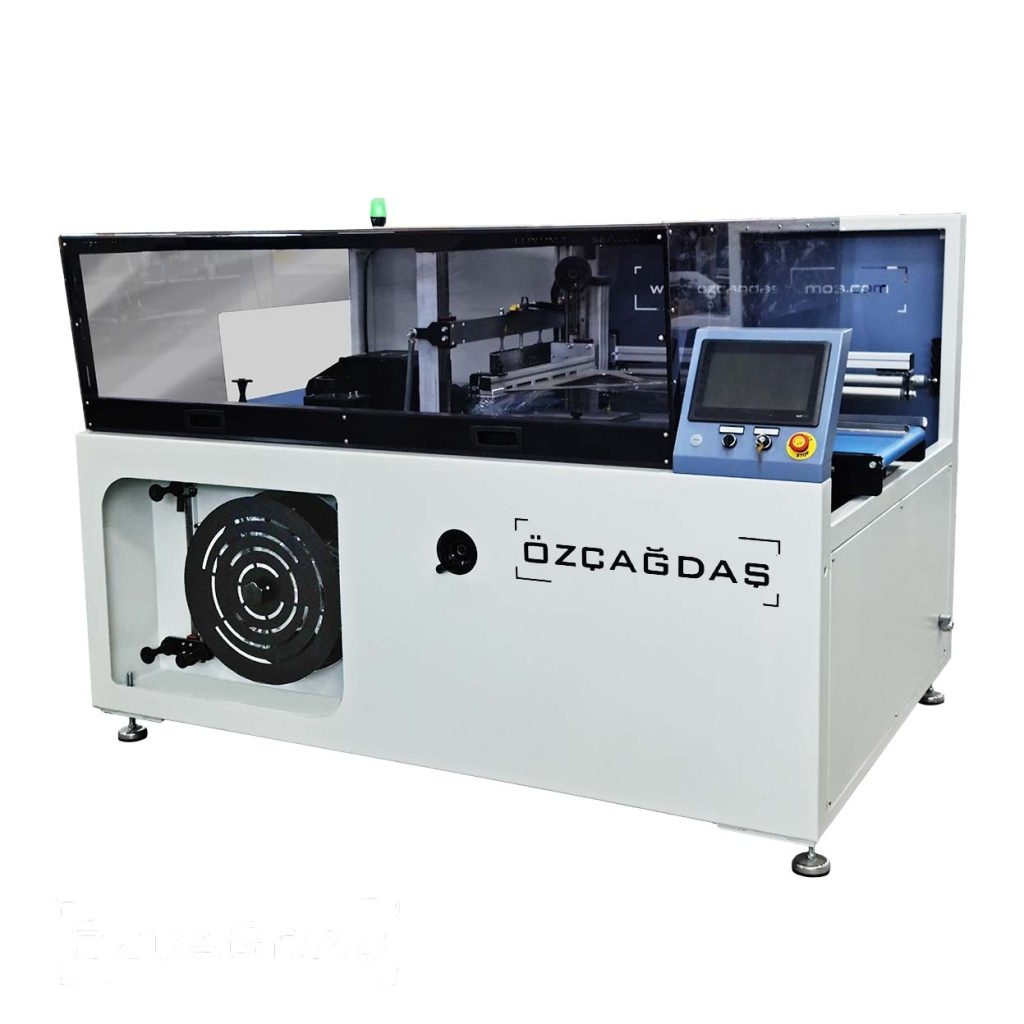

CS-F Series Continuous Side Sealer Automatic Shrink Wrapping Machine

01 Description

The CS-F series, compatible with demanding production units, allows significant savings in labor and time. In addition to being added to production and packaging lines, it also operates as a standalone unit. The continuous cutting automatic shrink packaging machine, using servo motor technology, offers perfect solutions for the flawless packaging of products of various sizes thanks to its side sealing system.

02 Application

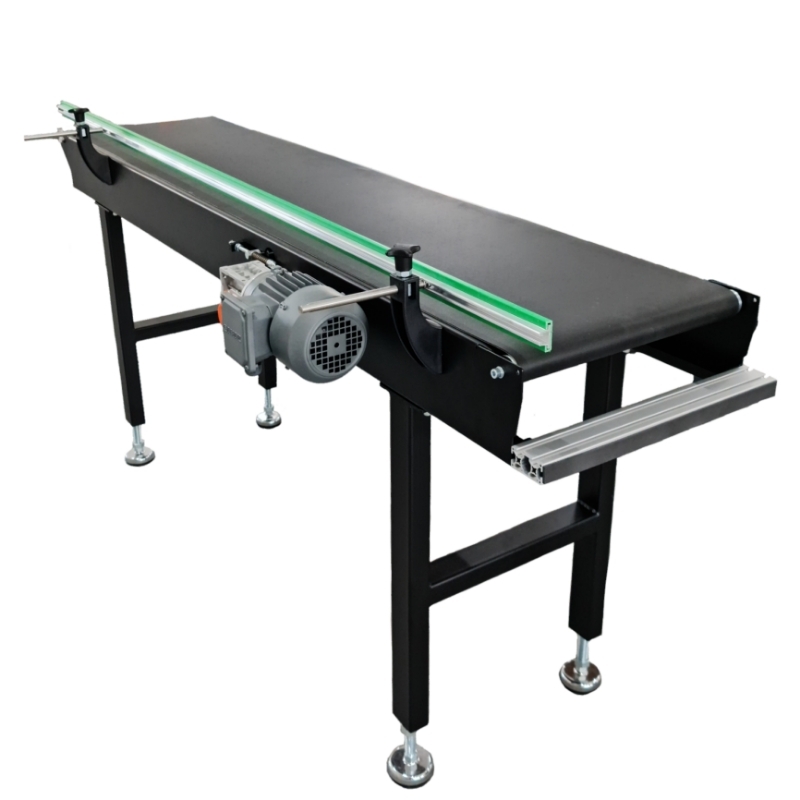

Products transported on the conveyor are transferred to the cutting area. The open side of the products is sealed with the servo-controlled hot jaw and side sealing system. The products are then transferred to the shrink tunnel via the discharge conveyor. Inside the tunnel, the shrink film tightly wraps around the product and conforms to its shape. The resulting packaging not only enhances the appearance of the product but also protects it from abrasion, scratching, and dust during storage and transport.

03 General Features

• Fast and precise operation with servo motor technology
• Automatic adjustment of package height and width from the operator panel (optional)
• Parameters and settings easily made via 7” LCD color touchscreen
• Real-time capacity reading from the operator panel
• Motorized film drive mechanism
• Servo-controlled ceramic-coated jaw system
• Automatic product length detection
• Easy waste wrapping and unloading
• Sealing achieved with PID temperature control system
• Silicone curtains at tunnel entry and exit
• Excellent insulation with minimal heat loss
• Adjustable tunnel conveyor speed
• Adjustable tunnel temperature
• High shrink speed
• Production efficiency and packaging quality
• Easy and quick film change
• Braked wheels for easy transport
• Emergency stop button
• Easy installation and simple operation
• CE standard
• 1-year warranty excluding wear parts
• 7-year spare parts supply guarantee

04 Technical Specifications

• Model: CS-F 45/25
• Max. Product Height: 250 mm
• Max. Product Width: 450 mm
• Max. Reel Width: 800 mm
• Reel Diameter: 300 Ø
• Film Type: POF / PE
• Film Thickness: 7-80 µ
• Capacity: 25-30 (m/min)
• Power Supply: 380V 3 phase 50/60 Hz
• Installed Power (Including Tunnel): 26 kW
• Air Consumption: 6 bar
