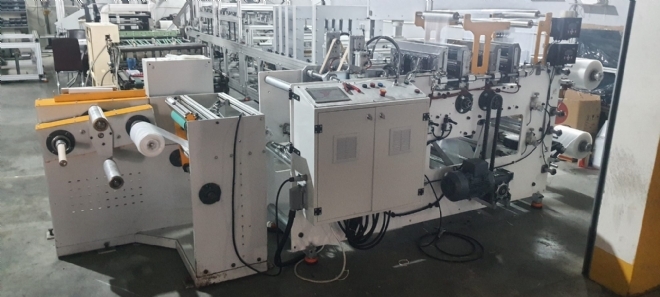

?? PLONTEC Embossing & Sealing Machine – Precision Patterning & Reliable Sealing

Designed for applying high-precision patterns and strong sealing on plastic film materials, the PLONTEC Embossing and Sealing Machine enhances production efficiency with advanced edge control, automatic winding system, and a user-friendly PLC touchscreen interface.

?? Technical Specifications

1. Embossing Unit

• Roller Width: 500 mm

• Film Width: 450 mm

• Embossing Rollers: 2 units

• Rubber Press Rollers: 2 units

• Pattern Type: Horizontal stripes (optional patterns available)

• Positioning: Hydraulic system for roller adjustment

• Drive System: 2 units – speed-controlled AC motors

• Cooling: Water-cooled embossing roller

• Heating: Hot air tunnel with resistance near the film (pneumatic system)

2. Film Guidance and Edge Control

• Edge Sensors: 2 units

• Balancing Rollers: Pneumatically adjustable for both films

• Edge Trim Removers: 2 units

3. Winding Unit

• Roll Loading: 2 air shafts

• Tension Control: Magnetic torque brake with loadcell (2 units)

• Auto Transfer Winding: Cuts film at the end of roll and transfers to the other shaft

• Winding Type: Double-shaft system at line end

4. Sealing (Jaw) Unit

• Press Roller: Silicone roller driven by pneumatic cylinder

• Sealing Jaw: 1 unit, heat-controlled, forward-backward movement

5. Control Unit

• Control Type: PLC system

• Settings: All parameters adjustable via touchscreen (temperature, speed, length, etc.)

• Line Speed: Up to 15 m/min (varies by film type and thickness)
