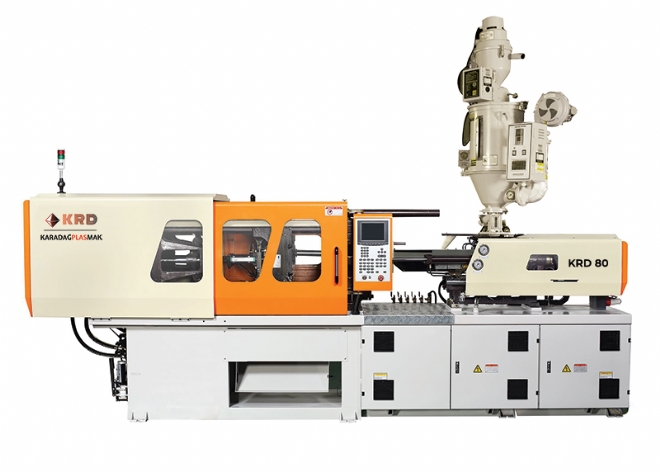

KRD 80

Injection Plastic Machine


  1. Five-point toggle clamping system
  2. Hydraulic and mechanical door safety systems
  3. Servo motor and pump providing up to 70% energy savings
  4. High-pressure hydraulic gear pump
  5. Turkish language color screen
  6. High L/D ratio
  7. Oil temperature level indicator
  8. Core pull valve
  9. Air valve
  10. Dual injection and group piston
  11. Injection back pressure control
  12. Color alarm lamp
  13. Automatic lubrication unit
  14. Automatic mold thickness adjustment
  15. Water regulator with thermometer
  16. Ultra-fast mold clamping function
  17. Columns made of special steel for strength and reliability
  18. Movable platen supported by adjustable rolling wheels
  19. Mold opening and closing position control by linear transducer
  20. Four-section mold opening and closing pressure, speed, and position control
  21. Six heating control zones
  22. Screws and barrels made of nitrided steel for wear resistance
  23. Rocket and bushing made of alloy tool steel
  24. Low-pressure mold protection
  25. Ten-stage injection pressure
  26. Automatic barrel cleaning
  27. Smoothing function by time or position
  28. Fast mold opening and closing system

Optional Features

  1. Bimetallic screw and barrel
  2. Polycarbonate screw
  3. Enlarged hydromotor, pump, and PET screw for PET
  4. Group ruler
  5. Mold clamping crane
  6. Fully enclosed cage system
  7. Six, eight, or ten water regulators
  8. Accumulator for fast injection
