TECHNICAL DETAILS

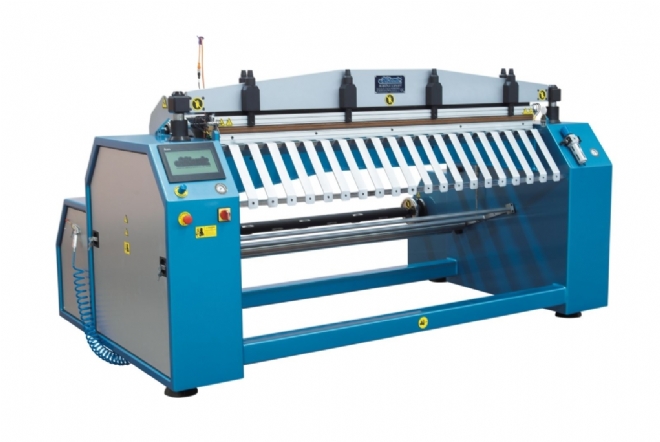

AK1200 LARGE SIZE BAG CUTTING MACHINE

General Information:

• This machine is suitable for producing heavy-duty bags from materials such as LLDPE, LDPE, MLDPE, HDPE, EVA, CPP, OPP, PP, PE, and PA.
• It cuts bags one by one from the roll.

Film Thickness:

• Minimum: 50 microns (2×20 - Double layer, tubular form)
• Maximum: 1000 microns (2×500 - Tubular form or 4×250 - Gusseted tubular form)

Film Length:

• Minimum: 5 cm (50 mm)
• Maximum: 9999.9 cm (99999 mm)

Control and Display:

• PLC controlled operator control panel
• Touchscreen TFT display

Roll and Unwinder:

• Air shaft roll holders
• Maximum roll diameter: 800 mm
• Maximum roll weight: 250 kg
• Shaft diameter: 70 mm (outer), 76 mm (inner diameter, for cardboard roll)

Heaters:

• Independently controlled three separate resistance wires (heaters) with digital impulse system.
  • 1st and 2nd heaters
  • 1st and 3rd heaters
  • 2nd and 3rd heaters

Cutting and Sealing:

• Cutting can be done without sealing.
• Warning system for broken resistance wire
• Emergency automatic stop system with reflective photocell

Motor and Speed Control:

• A.C. motor control speed drivers

Counting and Measuring:

• Digital output counter (mm measurement)

Optional Features:

• Color photocell for printed products
• Static electricity eliminator bar
• Air blowing system for the jaw

Power Consumption and Air Requirement:

• During operation: 1.0-2.5 kW
• Total power: 3P 380V+N+MP, 6.60 kW, 50Hz
• Total air requirement: 8-10 bar

Additional Feature:

• Shaft lock system

These technical details are prepared to ensure efficient and flexible use of the AK1200 Large Size Bag Cutting Machine.
