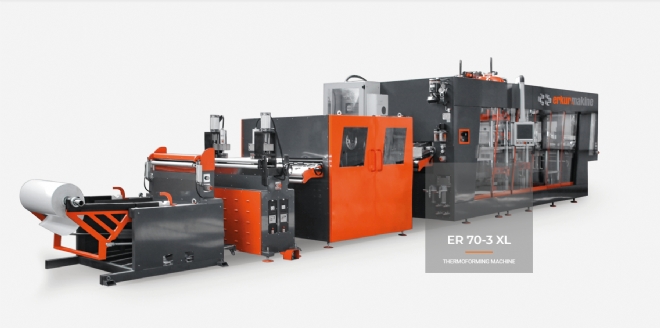

Thermoforming Machine ER 70-3 XL Technical Specifications

- **Function**: Form-Cut-Stack
- **Max. Mould Size**: 700 x 585 mm
- **Forming Mould Height**:
  - Upper: 125 – 175 mm (with adaptor), 305 – 355 mm (without adaptor)
  - Lower: 125 – 175 mm
- **Cutting Mould Height**:
  - Upper: 30 – 140 mm
  - Lower: Fixed at 140 mm
- **Punching Mould Height**:
  - Upper: –
  - Lower: –
- **Forming and Cutting Area**: 650 x 450 mm
- **Sheet Width**: Max 740 mm
- **Sheet Thickness**: Max 0.1 – 2 mm
- **Sheet Unwinder Reel**: Max 1300 mm
- **Maximum Sheet Roll Weight**: 1500 kg
- **Max. Product Height**: Positive 100 mm / Negative 100 mm
- **Max. Dry Cycles**: 75 cycles/min
- **Running Power**: 30-50 kW
- **Total Installed Power**: 150 KVa / 160 KVa (Foam)
- **Vacuum**: 105 m³/min
- **Required Compressor**: 3 m³/min
- **Required Chiller**: 20,000 Kcal/h
- **Operation Pressure**: 6-8 bar
- **Forming Closing Force**: 70,000 daN
- **Cutting Closing Force**: 70,000 daN
- **Punching Closing Force**: 70,000 daN
- **Pitch Accuracy**: 0.15 mm
- **Lubrication System**: Automatic machine and chain lubrication
- **Maximum Stacking Height**:
  - Sweeper: 400 mm
  - Robot: 300 mm
- **Approximate Machine Weight**:
  - 3 stations: 12 tons
  - 4 stations: 16 tons
