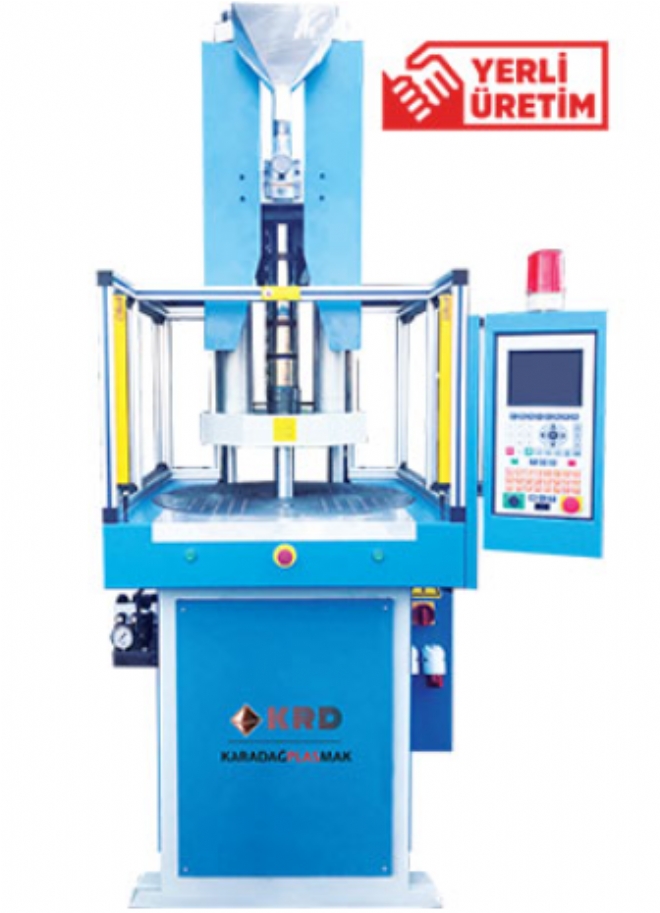

Technical Specifications for KRD-R 600 and KRD-V 800:

• Screw Diameter: For the KRD-R 600 model, Ø 40 mm and Ø 45 mm, for the KRD-V 800 model, Ø 40 mm and Ø 45 mm.
• Maximum Shot Weight (PS): Maximum injection weight for both models is 150 grams and 200 grams.
• Temperature Control: Temperature control for both models is 3 ZONE.
• Material Hopper Capacity: 20 liters for the KRD-R 600 model, and 25 liters for the KRD-V 800 model.
• Clamping Force: 60 tons for the KRD-R 600 model, and 80 tons for the KRD-V 800 model.
• Opening Force: 8.3 tons for the KRD-R 600 model, and 13.5 tons for the KRD-V 800 model.
• Mold Dimensions: 320x370x250 mm for the KRD-R 600 model, and 370x580x170 mm for the KRD-V 800 model.
• Opening Stroke: 200 mm for the KRD-R 600 model, and 220 mm for the KRD-V 800 model.
• Minimum - Maximum Daylight: 170/370 mm for the KRD-R 600 model, and 170/390 mm for the KRD-V 800 model.
• Ejector Stroke: Ejector stroke for both models is 60 mm.
• Ejector Force: 1.3 tons for the KRD-R 600 model, and 2.7 tons for the KRD-V 800 model.
• Maximum Hydraulic Pressure: Maximum hydraulic pressure for both models is 140 Kg/cm².
• Oil Tank Capacity: Oil tank capacity for both models is 240 liters.
• Pump Motor Power: 15 KW for the KRD-R 600 model, and 18.5 KW for the KRD-V 800 model.
• Heating Capacity: 4.1 KW for the KRD-R 600 model, and 4.5 KW for the KRD-V 800 model.
• Round Set Diameter: 830 mm for the KRD-R 600 model. This specification is not provided for the KRD-V 800 model.
• Machine Dimensions (LxWxH): Machine dimensions for both models are 1.55x2.50x3.75 meters.
• Machine Weight: 2.5 tons for the KRD-R 600 model, and 3.7 tons for the KRD-V 800 model.
