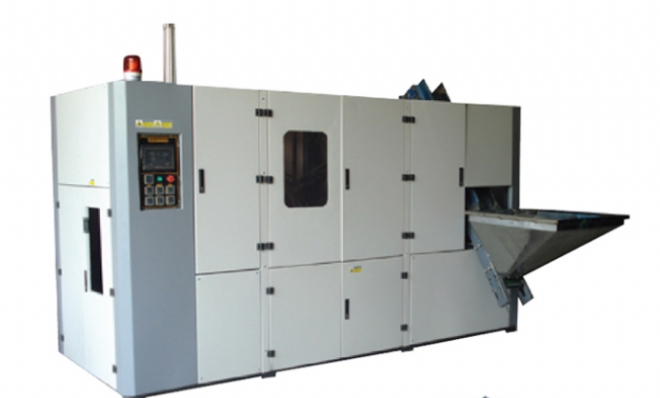

C Series Fully Automatic PET Blowing Machine

Model SM-4000C SM-6000C

Clamping Force 600KN 900KN

Clamping Stroke 120mm 120mm

Max. Stretch Stroke 350mm 350mm

Bottom Movement Stroke 30-60mm 30-60mm

Number of Cavities 4 6

Theoretical Output 3500 Bottles/Hour 5000 Bottles/Hour

Max. Mold Thickness 180mm 180mm

Voltage Standard 380V, 3 Phase, 50Hz 380V, 3 Phase, 50Hz

Number of Heating Zones 4 6

Total Power 24KW 36KW

Max. Volume 2.5L 2.5L

Neck Diameter 20-30mm 20-30mm

Max. Product Diameter 115mm 115mm

Max. Product Height 320mm 320mm

High Pressure Air Compressor 25-30 Bar 25-30 Bar

Low Pressure Air Compressor 8-10 Bar 8-10 Bar

Blowing Machine Dimensions 3.51.651.85m 4.21.61.85m

Net Weight 3.5T 4.5T
