Machine Code: TM800

Machine Dimensions:

Length: 11.50m
Width: 2.75 m (including electrical cabinet)
Height: 2.85m
Weight:
14,500 kg (for 4-station model)
13,500 kg (for 3-station model)
Maximum Sheet Width:

840 mm (+ 60 mm stretch tolerance)
Plate Thickness:

Range: 0.2mm - 3.0mm
Maximum Product Height:

Positive: 130mm
Negative: 130mm
Maximum Conversion Speed:

75 cycles/min. (In dry operation)
Maximum Mold Area:

800x600mm
Compressive Forces:

Forming station: 60,000 daN
Drilling station: 75,000 daN
Cutting station: 80,000 daN
Power of Heaters:

110 kW
Air Requirement (at 7 Bar Pressure):

6 - 8 m³/min.
Cooling Need:

25,000 Kcal/h
Vacuum Pump Capacity:

200 m³
Control unit:

Beckhoff

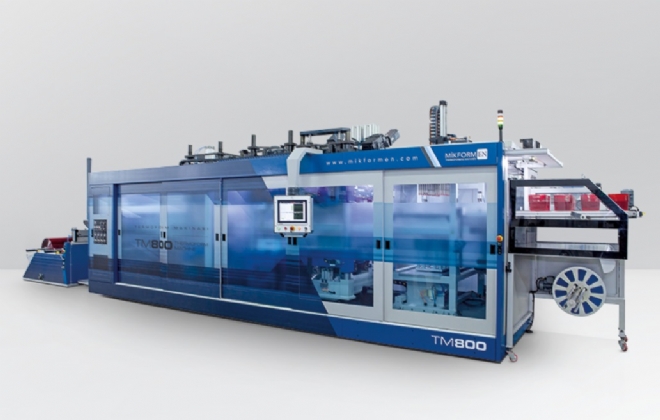

TM800 is an industrial machine working in the field of thermoforming and draws attention with its large plate processing capacity, high pressing forces and effective heating power. In addition, it is at a level that meets the needs in the sector with its features such as high speed capacity and vacuum pump.
