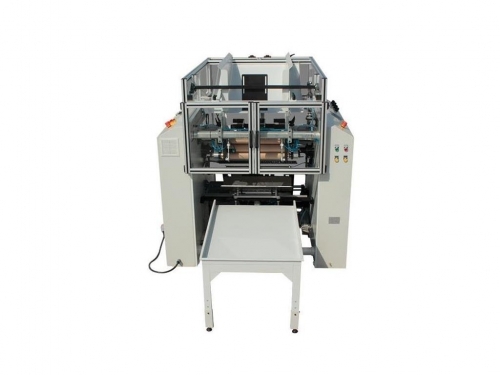

SM 1300 2S Servo Stretch Film Slitting and Rewinding Machine

Key Features

The SM 1300 2S machine shares the same design and product variety as the SM 1300 L model. The primary difference between these two machines is that the SM 1300 L model is equipped with one asynchronous (AC) motor, while the SM 1300 2S model boasts two German-brand servo motors. The presence of two servo motors allows the SM 1300 2S model to achieve a higher maximum speed compared to the SM 1300 L model. Additionally, it enables precise adjustment of the tension on the stretch film during winding.

Technical Specifications

• Roller Width: 700 mm
• Machine Speed: 1350 m/min
• Jumbo Roll Widths for Winding: 300-520 mm
• Core Inner Diameters for Winding: Ø38 - Ø50 - Ø76 mm
• Max. Roll Diameter for Winding: Ø240 mm
• Core Storage (Ø50): 100 Units
• Max. Jumbo Roll Weight: 55 kg
• Jumbo Roll Inner Diameter: Ø76 mm
• Air Consumption: ~150 lt/min (6 bar)
• Machine Dimensions: 160016501700 mm
• Machine Weight: 1350 kg
• Warranty Period: 1 year
