Perforated Aluminum Foil Wrapping Machine

Machine Specifications

Machine

• Servo: 2.2kW Delta Brand
• Motor Power: 2.2kW – 1500 rpm
• Power Supply: 380V
• Air Pressure: 6 bar

Jumbo

• Jumbo Width: 120 mm - 520 mm
• Maximum Jumbo Weight: 300 kg
• Jumbo Core Diameter: 76 mm - 152 mm
• Jumbo Outer Diameter: 600 mm

Winding

Pallet Stretch (PE)

• Stretch Thickness: 17 mc - 23 mc
• Stretch Width: 50 cm
• Core Diameters: 38 mm - 50 mm - 76 mm
• Winding Speed: Maximum 700 m/min
• Winding Length: 50 m - 1500 m
• Winding Time: 38 sec for 300 m

Food Stretch (PE-PVC)

• Stretch Thickness: 8 mc - 13 mc
• Stretch Width: 30 cm - 45 cm
• Core Diameters: 38 mm - 76 mm
• Winding Speed: Maximum 700 m/min
• Winding Length: 30 m - 1500 m
• Winding Time: 38 sec for 300 m

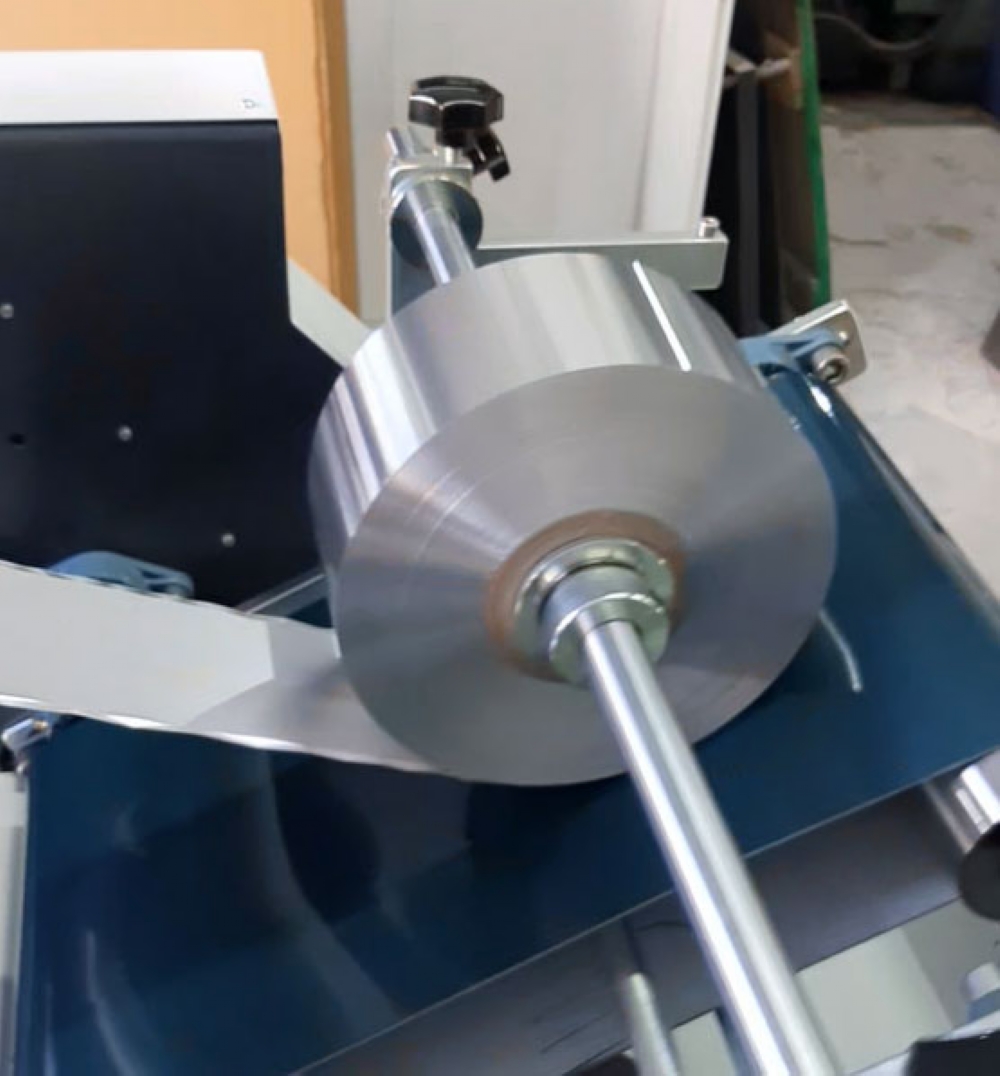

Aluminum Foil (Food Foil – Hookah Foil – Hairdresser Foil)

• Foil Thickness: 8 mc - 50 mc
• Foil Width: 10 cm - 50 cm
• Core Diameter: 38 mm
• Winding Speed: Maximum 500 m/min
• Winding Length: 3 m - 600 m

Slitting

• PE Pallet Stretch: Slitting into 2-3-4-5 equal parts for 38, 50, 76 mm cores
• Aluminum Foil: Slitting into 2-3-4 equal parts for 38 mm cores

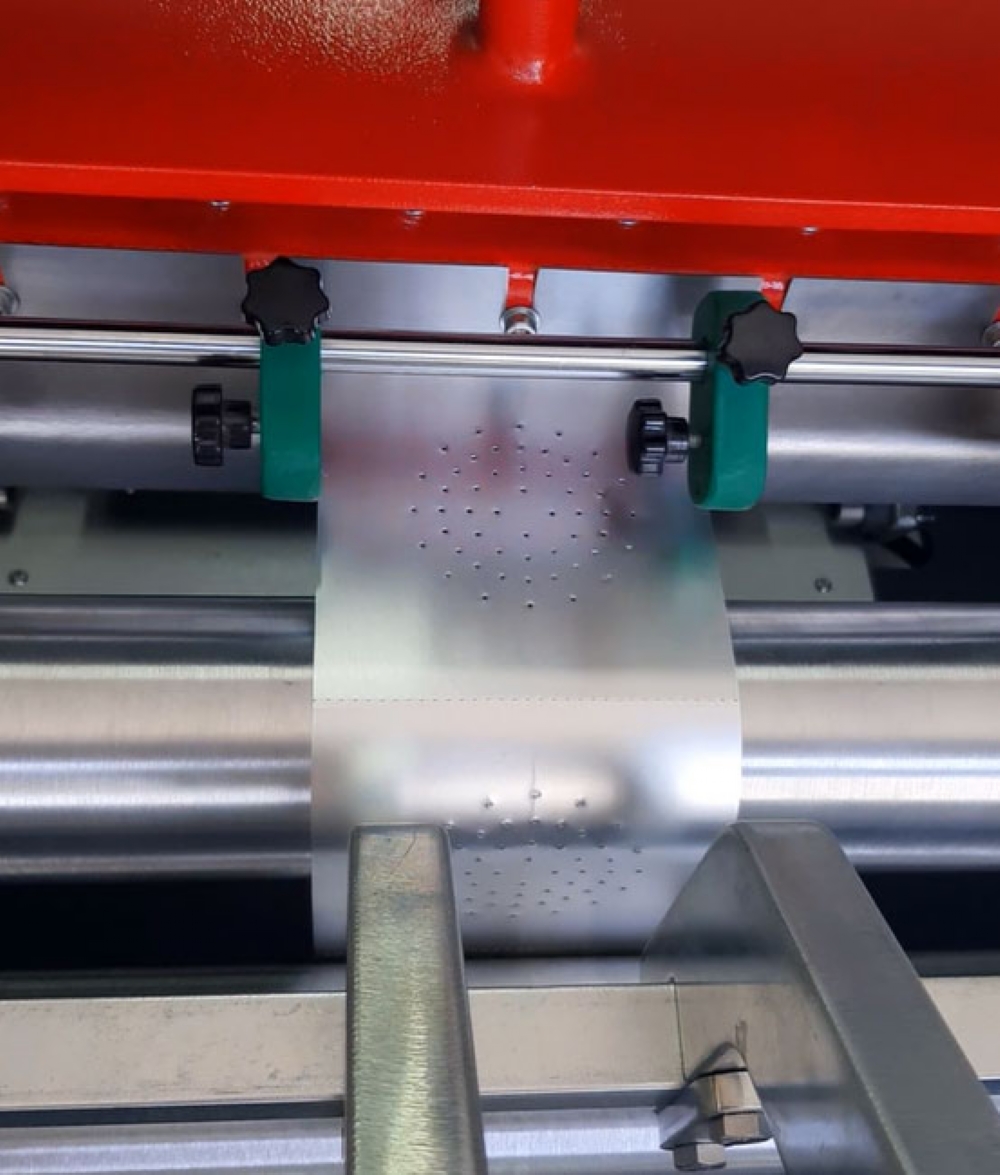

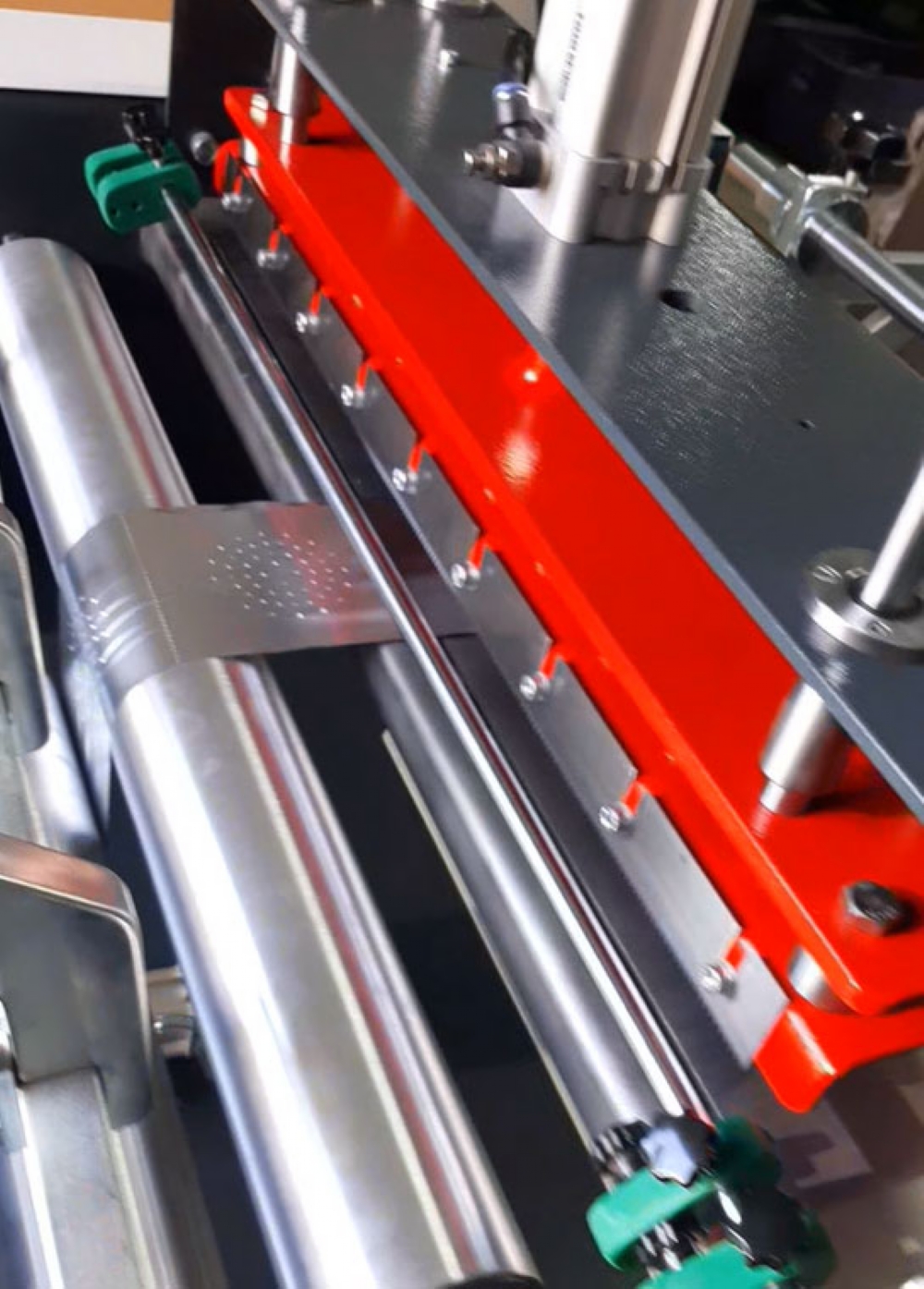

Perforation and Holes

• Perforation Interval: Every 12 cm or 15 cm
• Hole Count: 60-90 holes, 2 mm in diameter per sheet

Machine Dimensions

• Width: 120 cm
• Height: 170 cm
• Length: 140 cm
• Weight: 500 kg
