Product Description

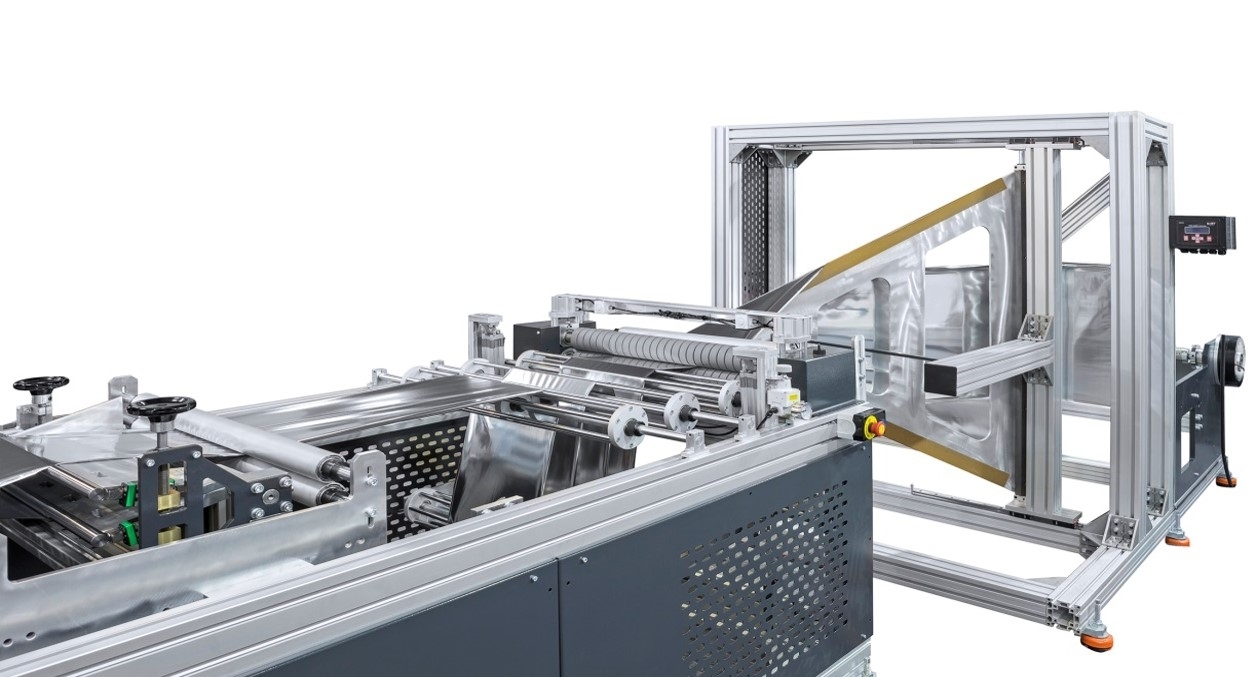

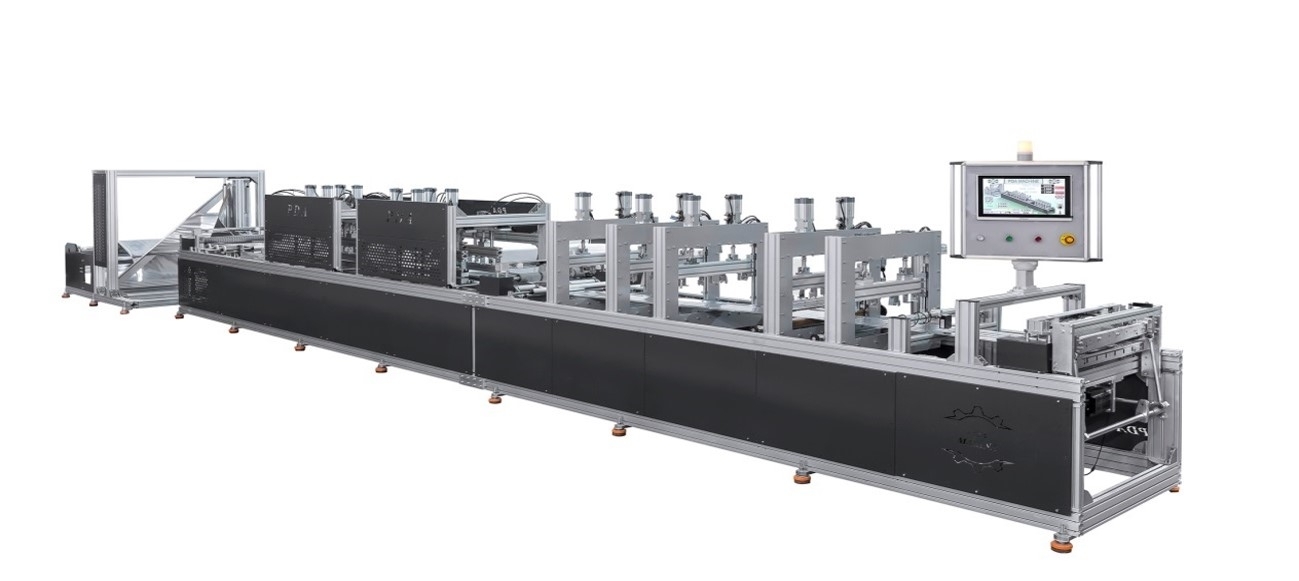

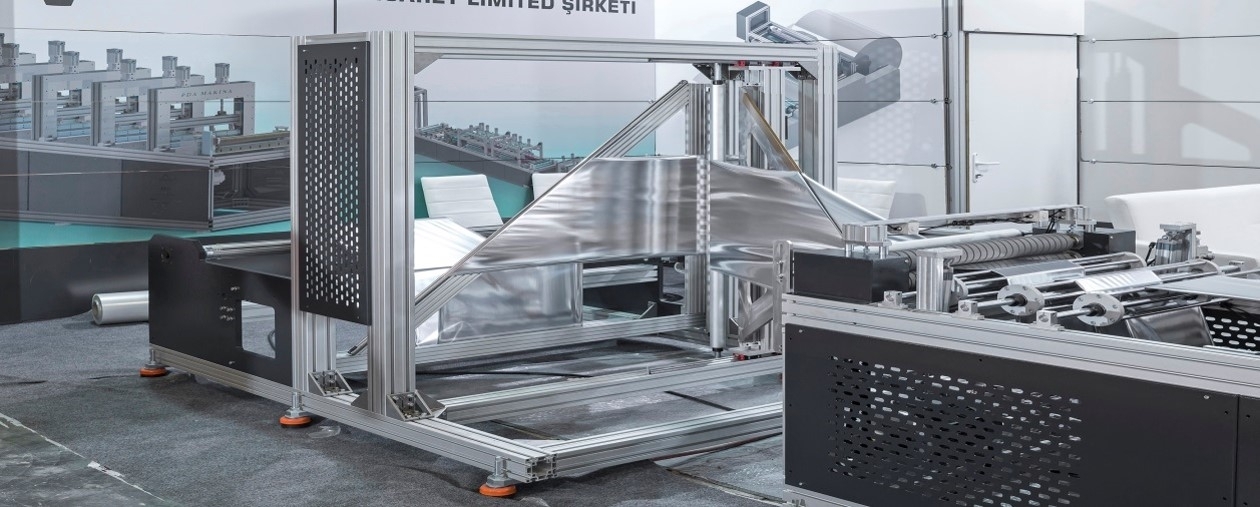

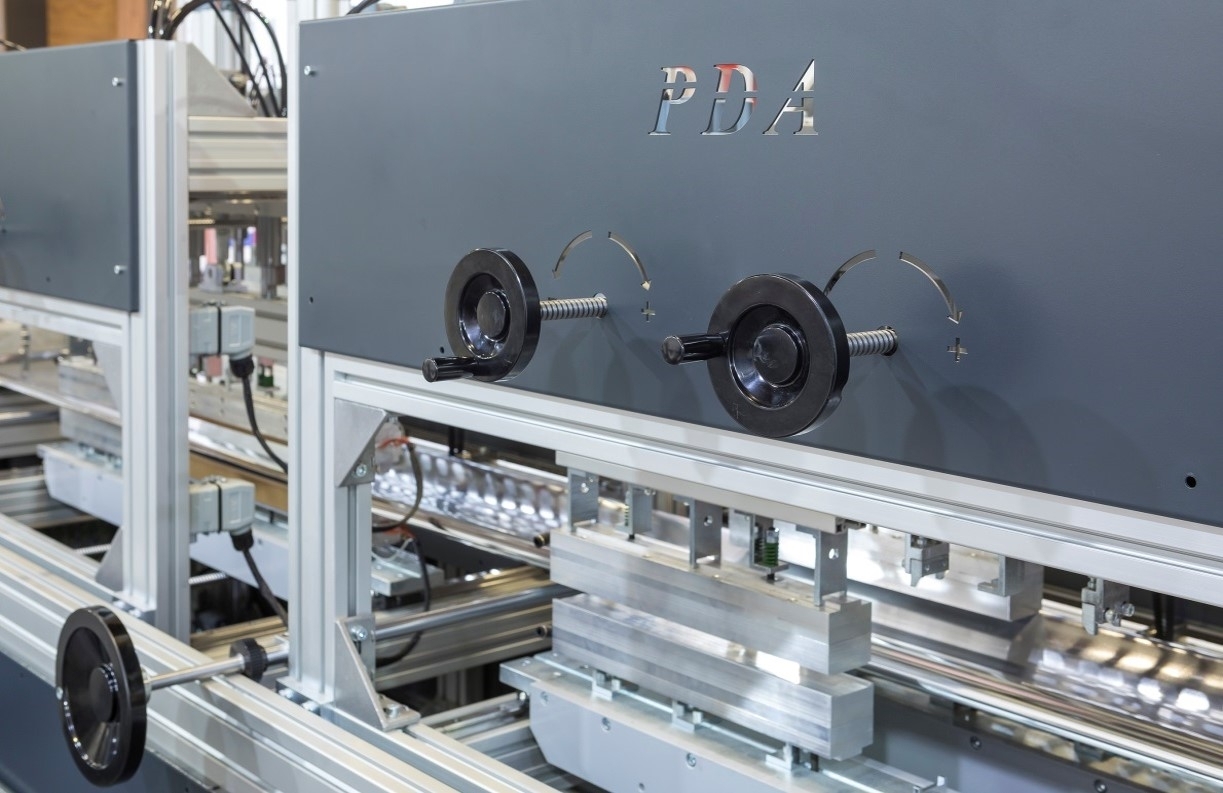

Doypack Bag Making Machine Product Features
Bag Type:
3 Side Welded Bag
Zip Stand Up Bag
Coil Dimensions:
Width: Maximum 1200 mm
Diameter: Maximum 600 mm
Raw materials:
Laminated film: LDPE, CPP, MCPP, AL, NYLON, PP, PE-CRAFT LAMINATED FILM TYPES
Bag Dimensions:
Length: 70-380 mm (maximum 2280 mm with 6 intermittent jumps)
Width:
3 Side Welded Bag: 75-400 mm
Bottom Weld of Upright Bag: 100-300 mm
Bag Cutting Speed:
35-110 pcs/minute
Doypack Source Unit:
Structure: Combined aluminum and steel body
Drive: Pneumatic Cylinder
Quantity: 1 lot
Length: 650mm
Lock Source Unit:
Structure: Combined aluminum and steel body
Drive: Pneumatic Cylinder
Quantity: 1 lot
Length: 650mm
Transverse Welding Unit:
Structure: Aluminum and Steel body
Drive: Pneumatic Cylinder
Quantity: Transverse welding 4 groups, Cooling 1
Length: 650mm
Cooling Type: Water cooling
Path Welding Unit:
Structure: Combined aluminum and steel body
Drive: Pneumatic Cylinder
Quantity: 2 groups
Length: 650mm
Contact Supplier
Send an inquiry about Doypack Bag Making Machine to Pda Makina.
