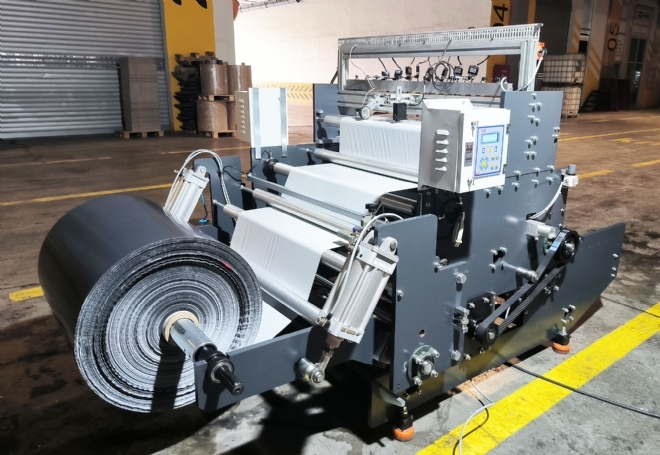

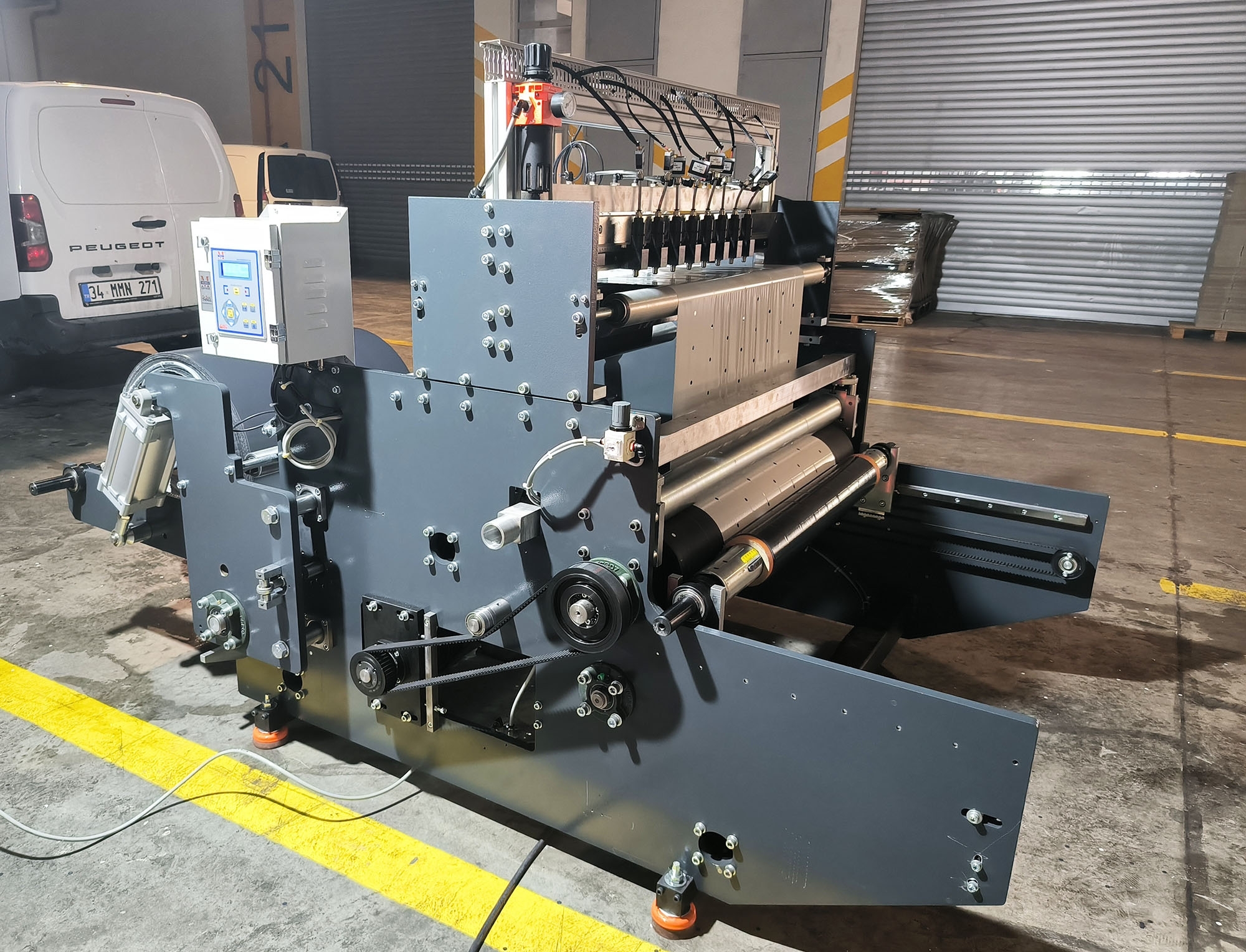

Stnad Alone Hole Punch Unit

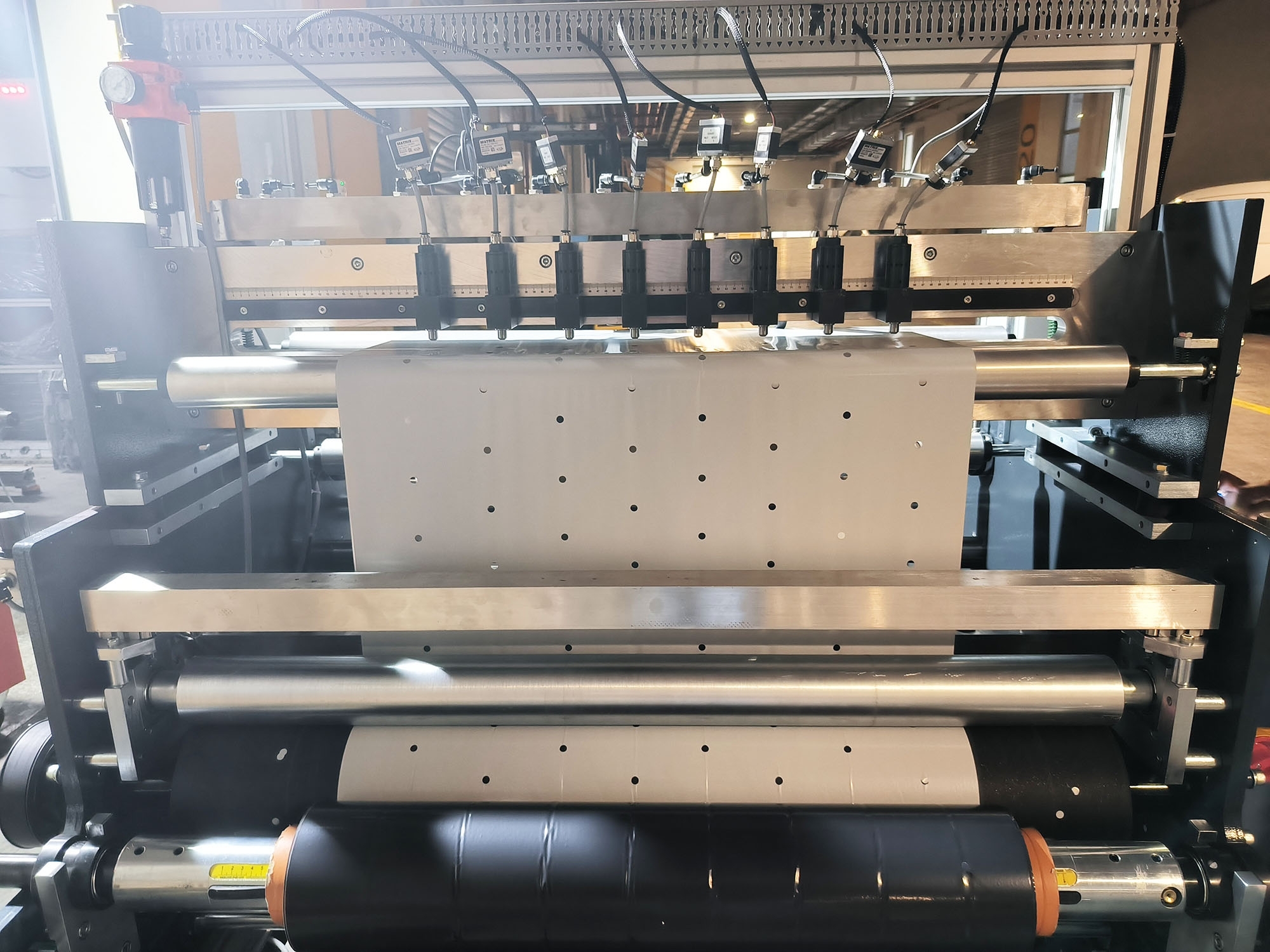

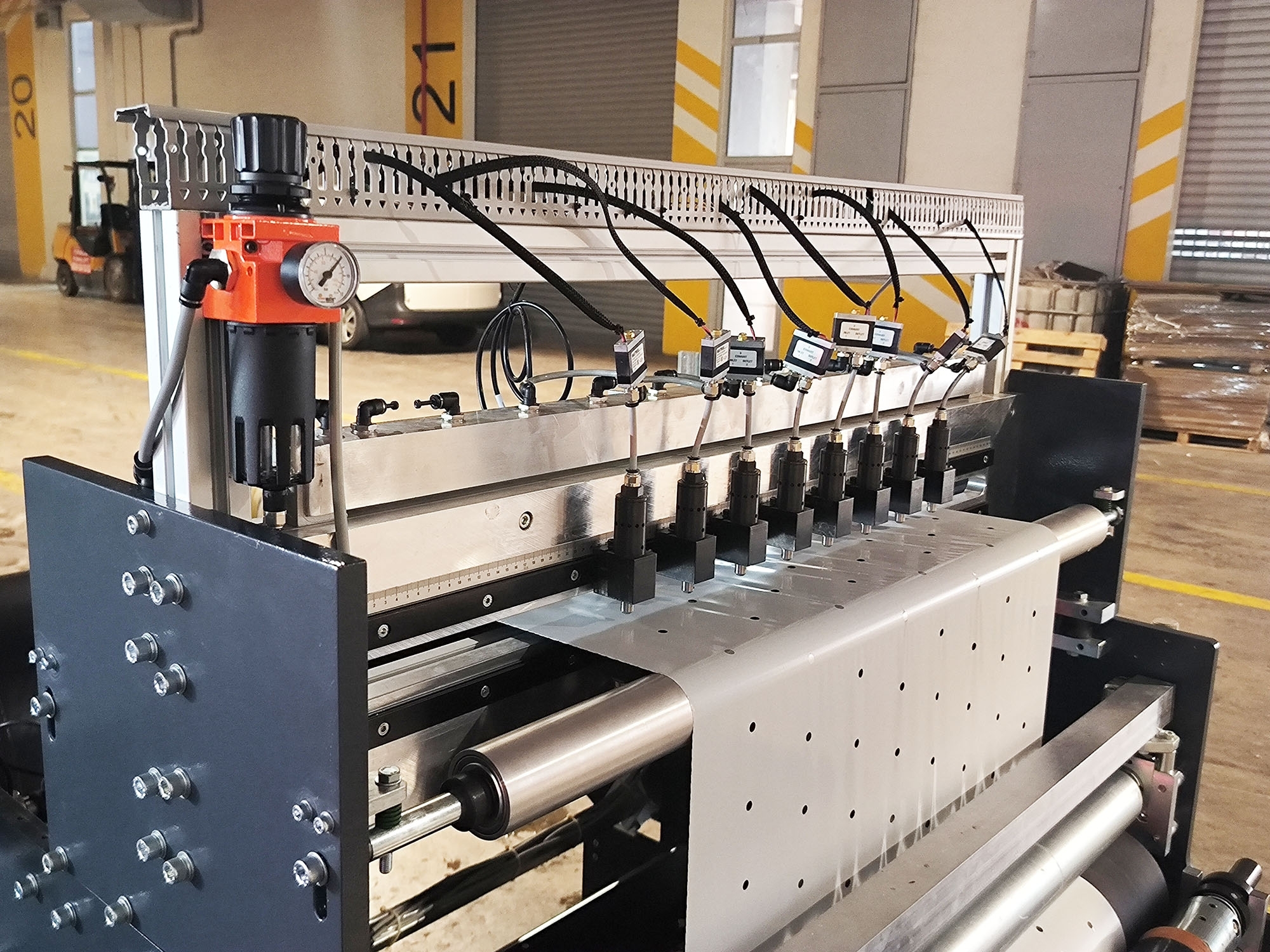

Hole Punching Section:

• Max material width: 1000 mm

• Hole diameter: 8 mm

• Number of holes: 8

• Punching speed: 20 holes/sec

• Film line speed: 120 m/min (varies based on punching interval)

• Operating system: High-speed pneumatic cylinder

• PLC-controlled automation system

• Hole spacing and valve timing: Adjustable via touchscreen interface

• Film residue from punching: Transferred to a tank via vacuum system

• Each punching die: Individually enabled/disabled via screen

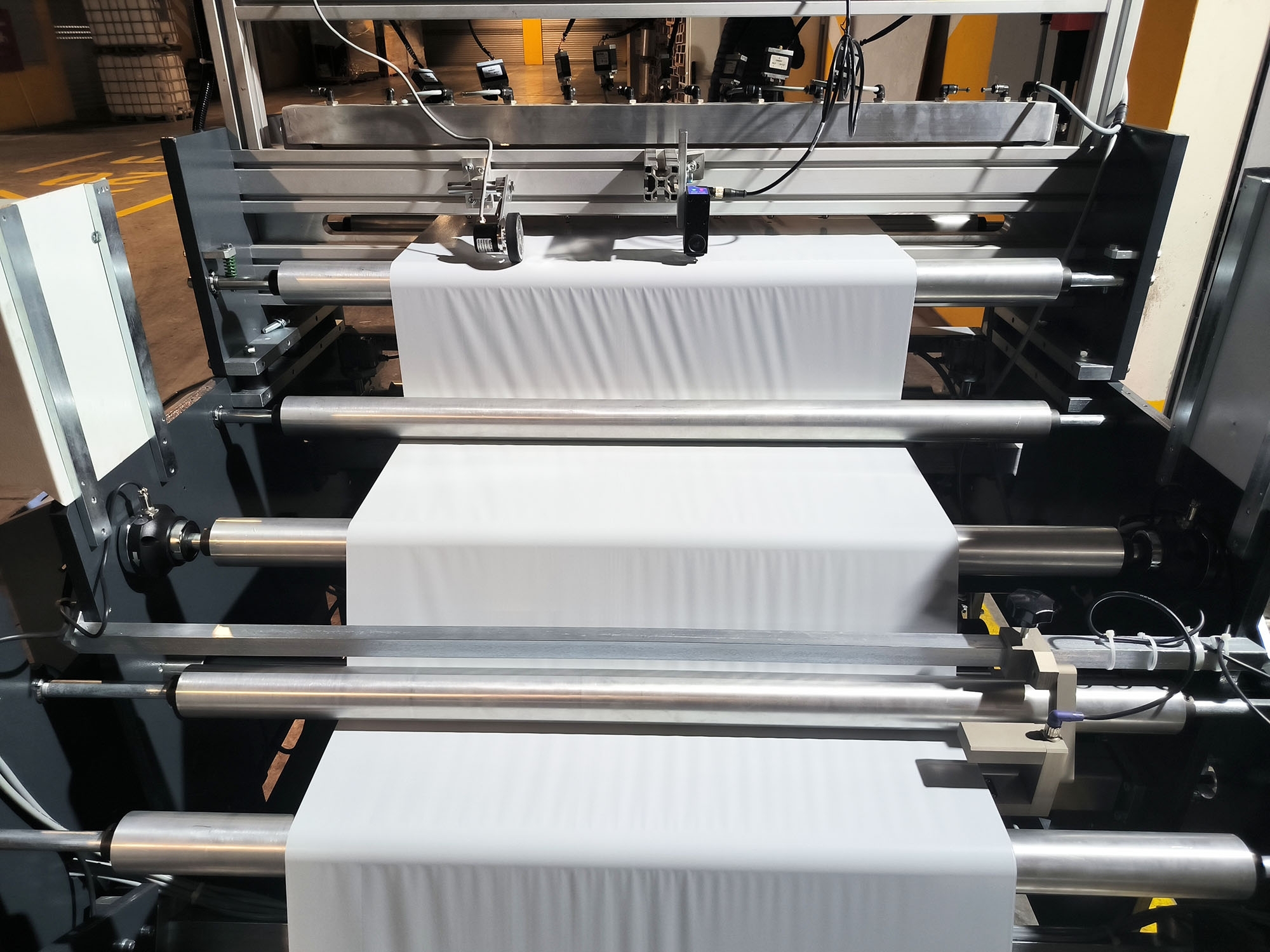

• Color sensor for precise operation with printed films

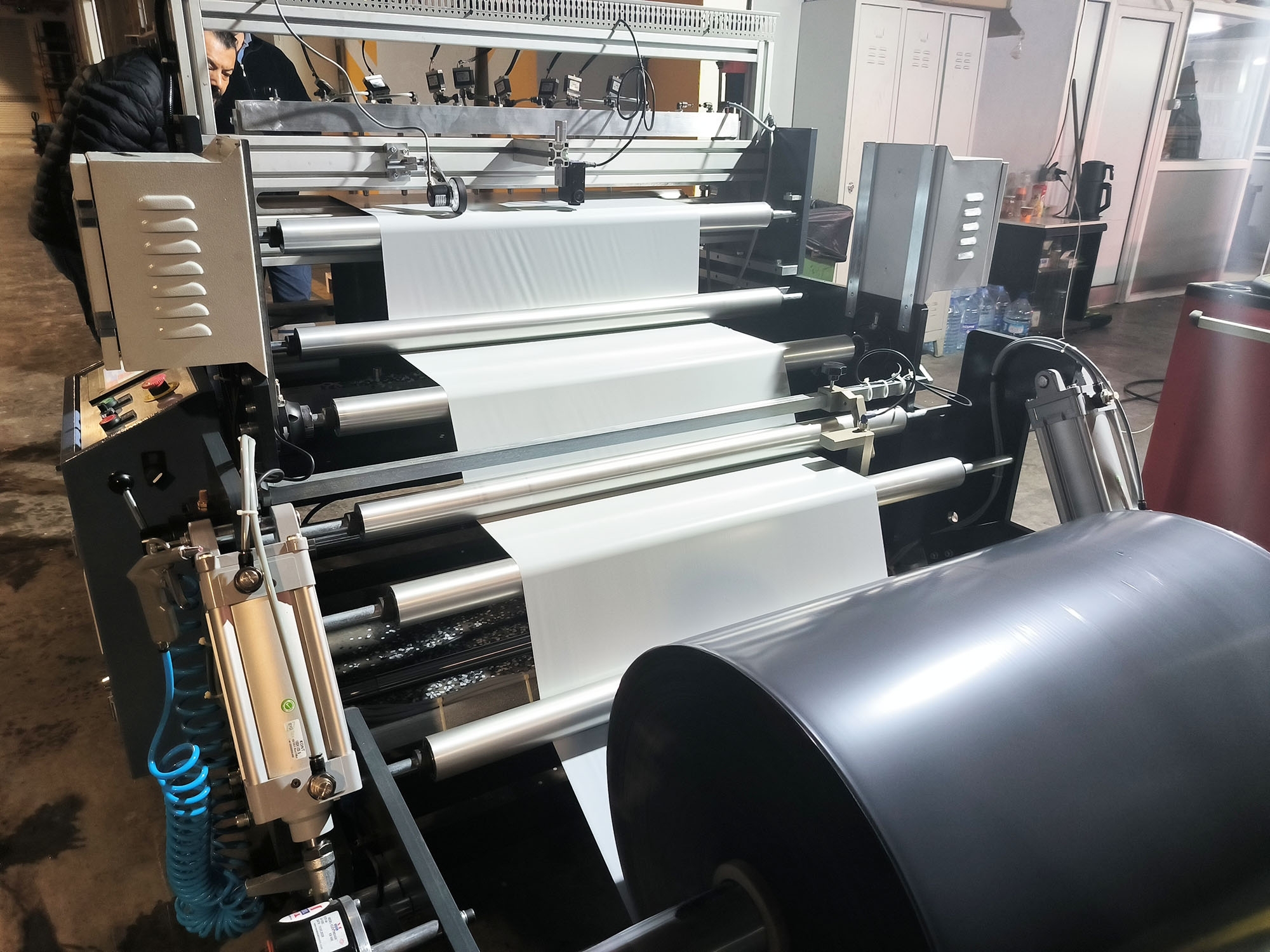

Unwinding Section:

• AC motor with speed control for precise film tension

• Automatic edge control system

• Unwinding shaft: 3” air shaft

Rewinding Section:

• Rewinding shaft: 3” air shaft
